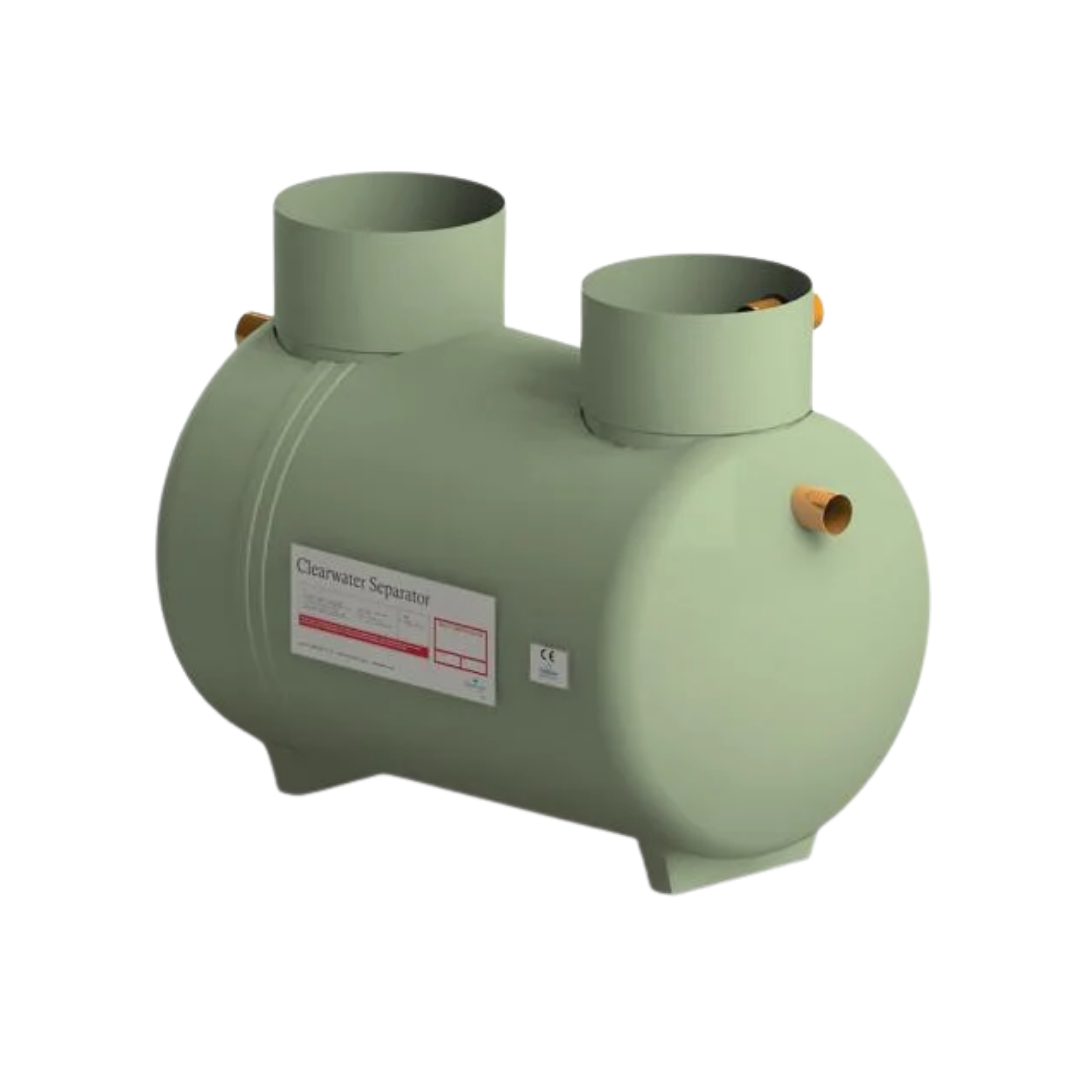

Clearwater 3000L Grease Separator | NSG06
£2,660.00£2,664.00

Secure Payment

Multiple payment gateways for fast secure checkout.

Best Price Guarantee

If you find the same product cheaper elsewhere, we'll match it.

Direct Drainage Reviews
 Best Price Guarantee Free Delivery!

 The Clearwater 3000L Grease Separator allows fats and grease to naturally separate out from water, allowing their removal prior to the drainage system. This is an effective and hygienic method of separating fat and grease from wastewater flow.

Grease separators are designed for small canteens and public houses, as well as for larger applications such as commercial kitchens, hotels and big restaurants. The separator should be installed close to the source of contamination before any foul waste can enter the drainage flow and to suit the expected liquid temperature.

Installation & Operation Guideline

Clearwater NSG06 Drawing

 Clearwater NSG06 Specification

Capacity (litres):   3000
Length (mm):   3018
Diameter (mm): 1224
Shipping Height (mm):   1570
Standard Pipework (mm):   160
Empty Weight (kg):   160

 Clearwater NSG06 Features and Benefits

    • Greatly reduces drain blockages, for maximum operational efficiency
    • Helps improve performance of septic tanks and field drains for best results
    • Prevents contamination of small sewage treatment plants, reducing risk of breakdown
    • Compliant with BS EN 1825-1
    • Protects mains drainage system from grease blockages
    • This range does not come with a manhole cover/frame as they can be installed in different areas - you will need to purchase this separately when you have determined the install location (pedestrian duty, heavy duty etc.)

Clearwater NSG06 Alarm Options

Environment Agency PPG3 Guidelines stipulate that all separators must be fitted with a robust system to provide an audible and visual alarm if the grease level becomes too high. We strongly recommend that you purchase the Darcy Mains Separator Grease Alarm alongside this item, and it will be delivered with the separator ready to wire in.

Tank Code Capacity (litres) Length (mm) Flow (litres/second) Meals served per day
NSG04 2000 2072 4 200 meals
NSG06 3000 3018 6 300 meals
NSG09 4000 3895 9 500 meals
NSG18 8000 3231 18 700 meals
NSG24 11,0000 4386 24 900 meals
