Tricel Novo UK18 Sewage Treatment System (up to 18 person)
£4,860.00£4,607.00

Fast Delivery

Get it when you need it

Secure Payment

Multiple payment gateways

  • Product
  • Free Delivery

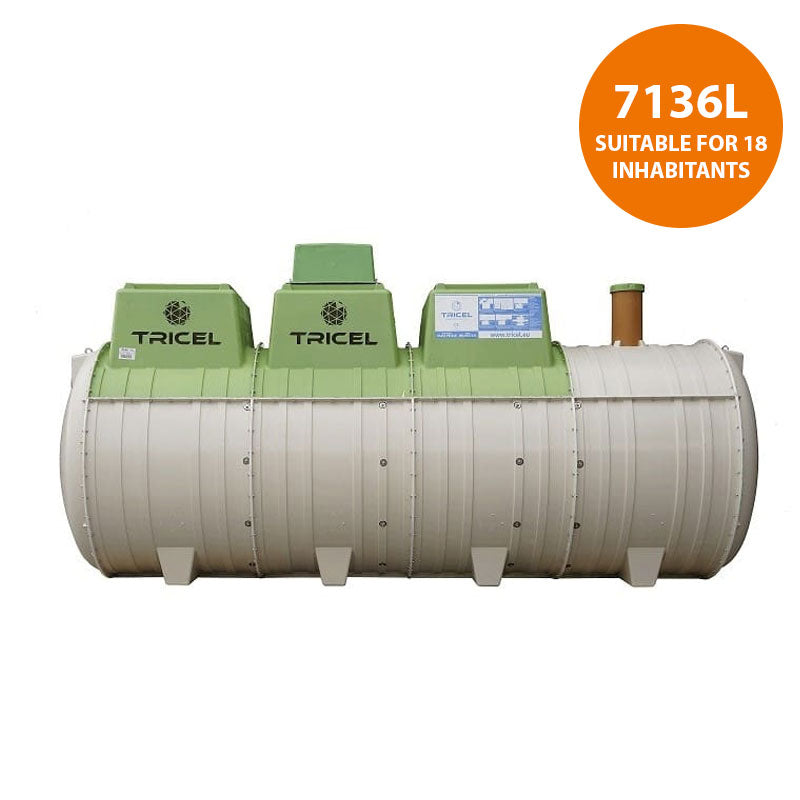

Tricel Novo UK18 Sewage Treatment System (up to 18 person)

***Off Loading is Customer Responsibility***



With a Tricel Novo waste water treatment system, you get an exceptional plant for waste water and sewage treatment which is simple, cost-effective and ensures compliance with EU regulations.



Free UK Delivery (excluding highlands & islands) 20 Year Structural Warranty  3 Year Mechanical Parts Warranty Sewage Treatment Best Price Guaranteed



 Tricel Novo Sewage Treatment System Manual

 Tricel Novo UK18 Drawing Gravity

 Tricel Novo UK18 Drawing Pumped

 Tricel Novo UK18 Wiring Diagram Gravity

 Tricel Novo UK18 Wiring Diagram Pumped

Tricel Novo Certificate

 Tricel Novo Turret Riser Installation Guide

 Tricel Novo Sewage Treatment Plant Brochure

 Commissioning and Servicing with RA Dalton

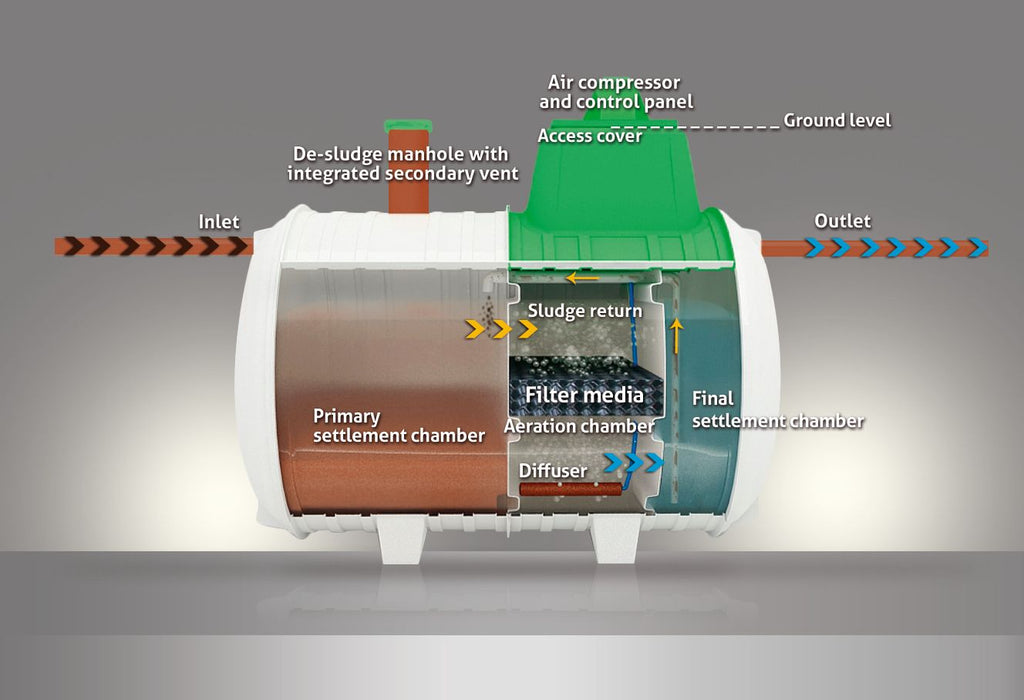

How a Tricel Novo works


Waste water enters the primary settlement chamber where heavy sludge and solids separate from the liquid and settle at the bottom of the tank. A scum is formed at the surface of this liquid which keeps odours from escaping. The sewage then passes into the aeration chamber where masses of naturally present bacteria consume the sewage. These bacteria are kept alive with air which is fed from a quiet, energy-efficient air compressor. These bacteria attach and multiply on a specially-designed filter media which has a lifetime guarantee.


Features and Benefits



    • Tricel Novo plant includes a Loss of Pressure alarm as standard

    • Pumped outlet units have a single pump and include a High Level Alarm as standard

    • High performance certificated under EN12566 Pt3

    • Shallow dig - 1.375m base to inlet

    • Manufactured by sheet-moulded composite (SMC), one of the strongest glass-reinforced plastic materials available

    • Low energy costs (200-watt motor) and spare part costs

    • Simple and economical to install with pea gravel/concrete surround and shallow dig

    • Quiet in operation, underground installation minimises visual impact

    • Mechanically simple sewage treatment solution

    • Easy access for maintenance without entering the plant - compressor situated in the top

    • Above-ground compressor position allows ventilation, and the fresh air feed enhances compressor life

  • Lower emptying volumes due to size and shape - single point de-sludge


Free Delivery is available to majority of the UK Mainland (excluding Scottish highland postcodes starting with PA, IV, AB and KW) and is subject to suitable access for a large goods vehicle artic / curtain sider.


This product is delivered to the kerb and it is the customers responsibility to provide suitable mechanical offloading facilities (eg. Loader or Excavator) to offload this tank safely. Please let us know if access is not suitable for an artic. If we can do anything to make your purchase more accommodating call our friendly team on 01388 537 050 or email sales@direct-drainage.co.uk prior to placing your order.
