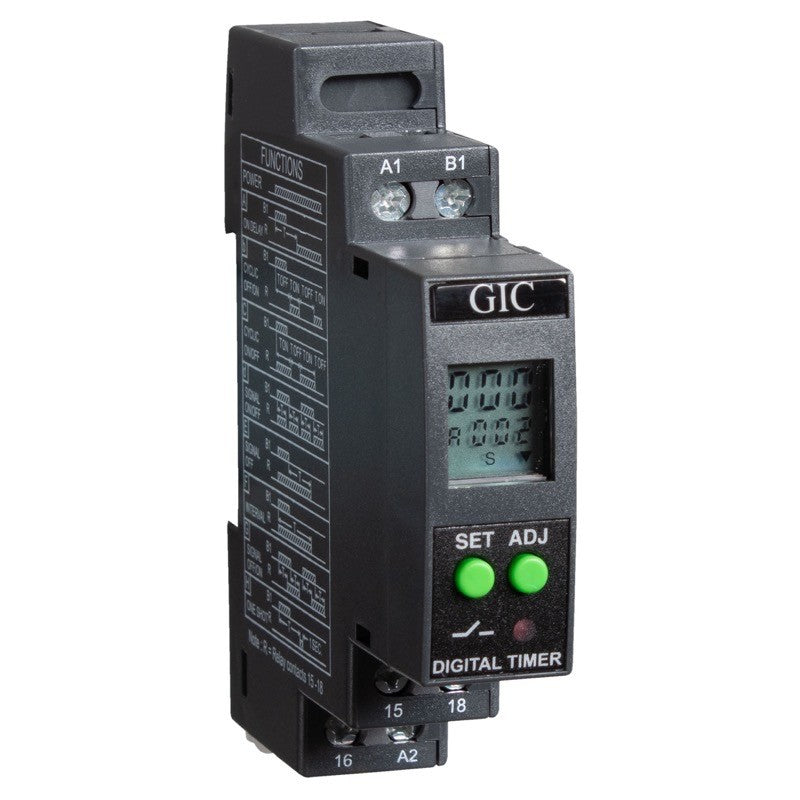

The GIC Multi-functional Digital Timer switch offers 17 selectable timing functions and adjustable timing options from 0.1 seconds to 999 hours. The timer switch will be ideal for automating processes with precise control.

Key Features:

• Supply Voltage: 24V to 240V AC/DC.
• Mode of Operation: Includes several modes, including Cyclic OFF/ON, Cyclic ON/OFF, Interval, ON Delay, One Shot Output, Signal OFF Delay, Signal OFF/ON, and Signal ON/OFF.
• Time Range: Adjustable from 0.1 seconds to 999 hours.
• Number of Contacts: Single SPDT (Single Pole Double Throw)
• Time Increment:  hours or seconds
• Maximum Current: Handles 2A (DC) and 3A (AC).
• Maximum Voltage: 240V AC and 250V DC.
• Terminal Type: Screw
• Temperature Range:  -10°C to +55°C.
• Dimensions: 89mm(L)x 76mm(D) x 17.5(W).
• Minimum Voltage: Can operate from 125V AC/DC.
• Minimum Current: Works with a minimum current of 0.1A.
