What size air blower is in my sewage treatment plant?

Are you are looking for a replacement air blower/ air compressor for your sewage treatment plant? Wondering which air blower will suit your sewage treatment system? Firstly, check the make and model of air blower currently installed. It should have a model number such as LA80B or ET60. The number in this code indicates how many litres of air per minute the air pump blows out. You will likely need a replacement with the same l/min of output as your current air blower.


If you do not know what air blower is in your sewage treatment tank, you can find out what size air blower would suit your system by the size of the treatment plant / how many people the system is designed to serve.


Good manufacturers always follow the guidelines when supplying air compressors with their sewage treatment system. The air compressor component of the sewage treatment plant is usually outsourced to specialist air blower manufacturers such as Secoh, Charles Austen, MEDO or Hiblow. Therefore, you can get a replacement air pump very easily, as it doesn’t matter which make you choose, they all do the same thing. Some are better quality than others which gives them a longer life expectancy. This is reflected in the price.


If you know the size of your sewage treatment system, but don’t know the make and model of your air blower, then follow the below guidelines for replacing your air blower. Please refer to the technical manual of your wastewater treatment plant for specific requirements.


Tank suitable for up to 6 people

requirement of 80l/min


MEDO LA80B

JDK-S-80

Hiblow HP80

Charles Austen ET80


Tank suitable for up to 8 people

requirement of 80l/min


MEDO LA80B

JDK-S-80

Hiblow HP80

Charles Austen ET80


Tank suitable for up to 10 people

requirement of 80l/min


MEDO LA80B

JDK-S-80

Hiblow HP80

Charles Austen ET80


Tank suitable for up to 12 people

requirement of 100l/min


MEDO LA100A

JDK-S-100

Hiblow HP60

Charles Austen ET100


Tank suitable for up to 18 people

requirement of 200l/min



JDK-S-200

Hiblow HP200

Charles Austen ET200


Tank suitable for up to 24 people

requirement of 200l/min


MEDO LAM-200

JDK-S-200

Hiblow HP200

Charles Austen ET200


Tank suitable for up to 30 people

requirement of 200l/min


MEDO LAM-200

JDK-S-200

Hiblow HP200

Charles Austen ET200


Tank suitable for up to 36 people

requirement of 280l/min


MEDO LAM-200 + LA80B

JDK-S-200 + JDK-S-80

Hiblow HP200 + HP80

Charles Austen ET200 + ET80


Tank suitable for up to 42 people

requirement of 400l/min


MEDO LAM-200 x2

JDK-S-200 x2

Hiblow HP200 x2

Charles Austen ET200 x2


Tank suitable for up to 50 people

requirement of 400l/min


MEDO LAM-200 x2

JDK-S-200 x2

Hiblow HP200 x2

Charles Austen ET200 x2


There is variations of the above blowers which have different alarm options. Get in touch, we’re happy to help! Phone 01388 537 050or email sales@direct-drainage.co.uk





Sale Off
Medo LA60B Air Pump
£165.00£140.00
Sale Off
Secoh JDKS60
£132.00£105.00
Sale Off
Charles Austen ET60 Linear Air Pump
£86.00£77.00
Sale Off
Hiblow HP60 Air Pump
£184.00£160.00
Sale Off

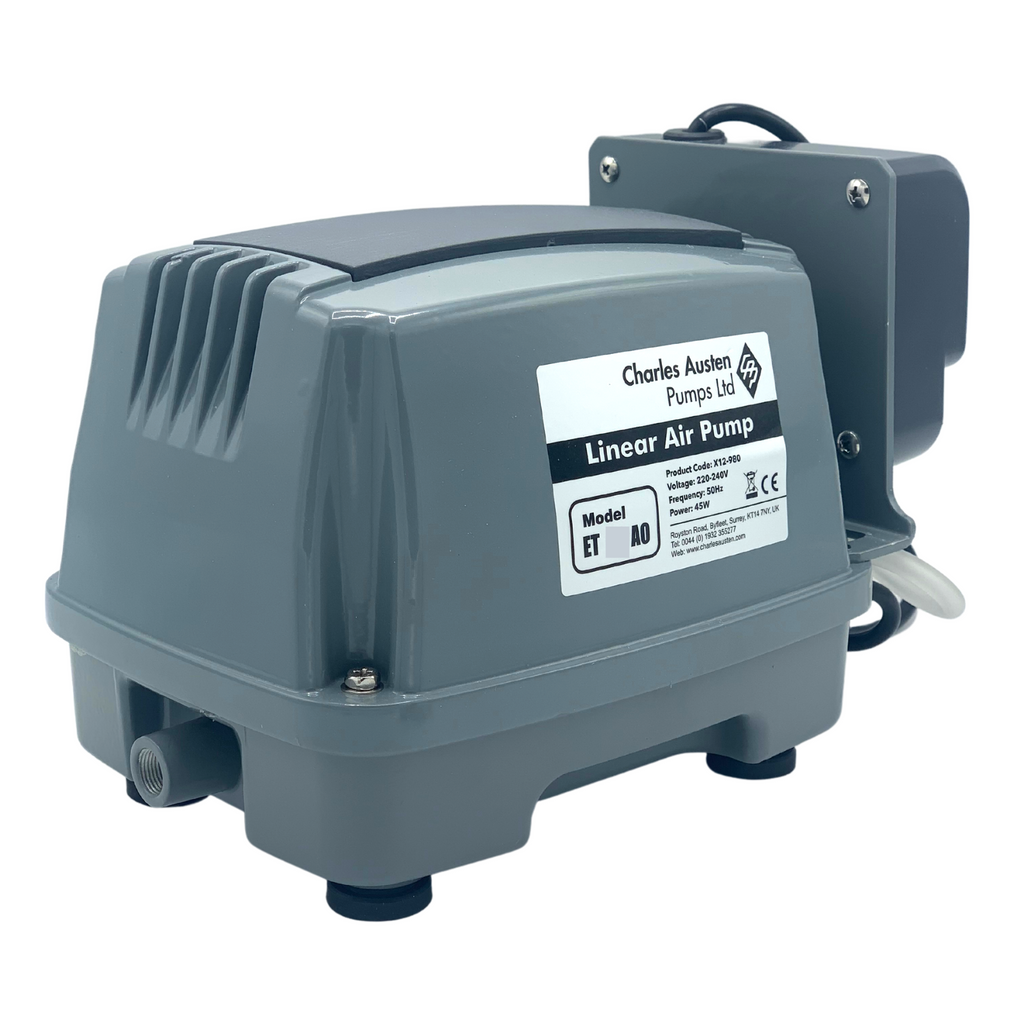

Charles Austen ET60AO Linear Air Pump
£105.00£89.00
Sale Off

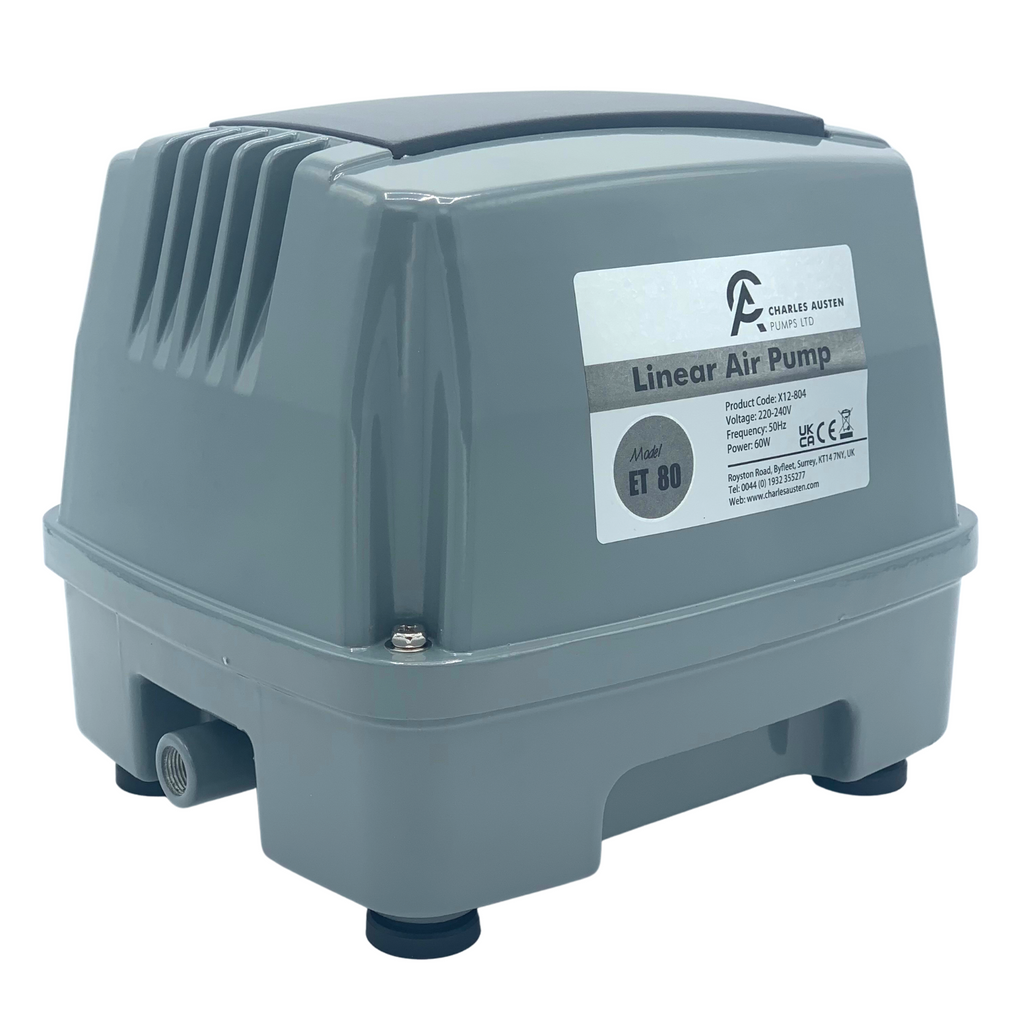

Charles Austen ET80 Linear Air Pump
£95.00£84.00
Sale Off

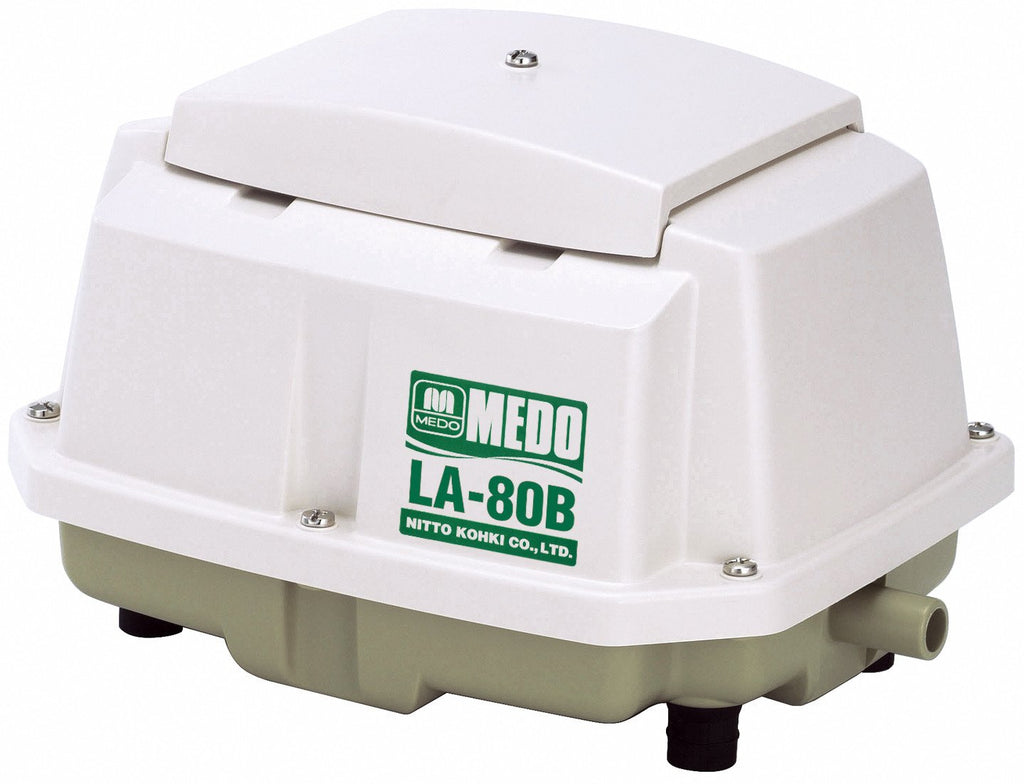

Medo LA80B Air Pump
