Secoh JDK-S-60 Single Series Diaphragm Blower (EL-60)
£120.00
5
6
6
6
6
6
6
6

ORDER IN

00Hours
00Minutes
00Seconds

FOR NEXT DAY DELIVERY

Direct Drainage Reviews

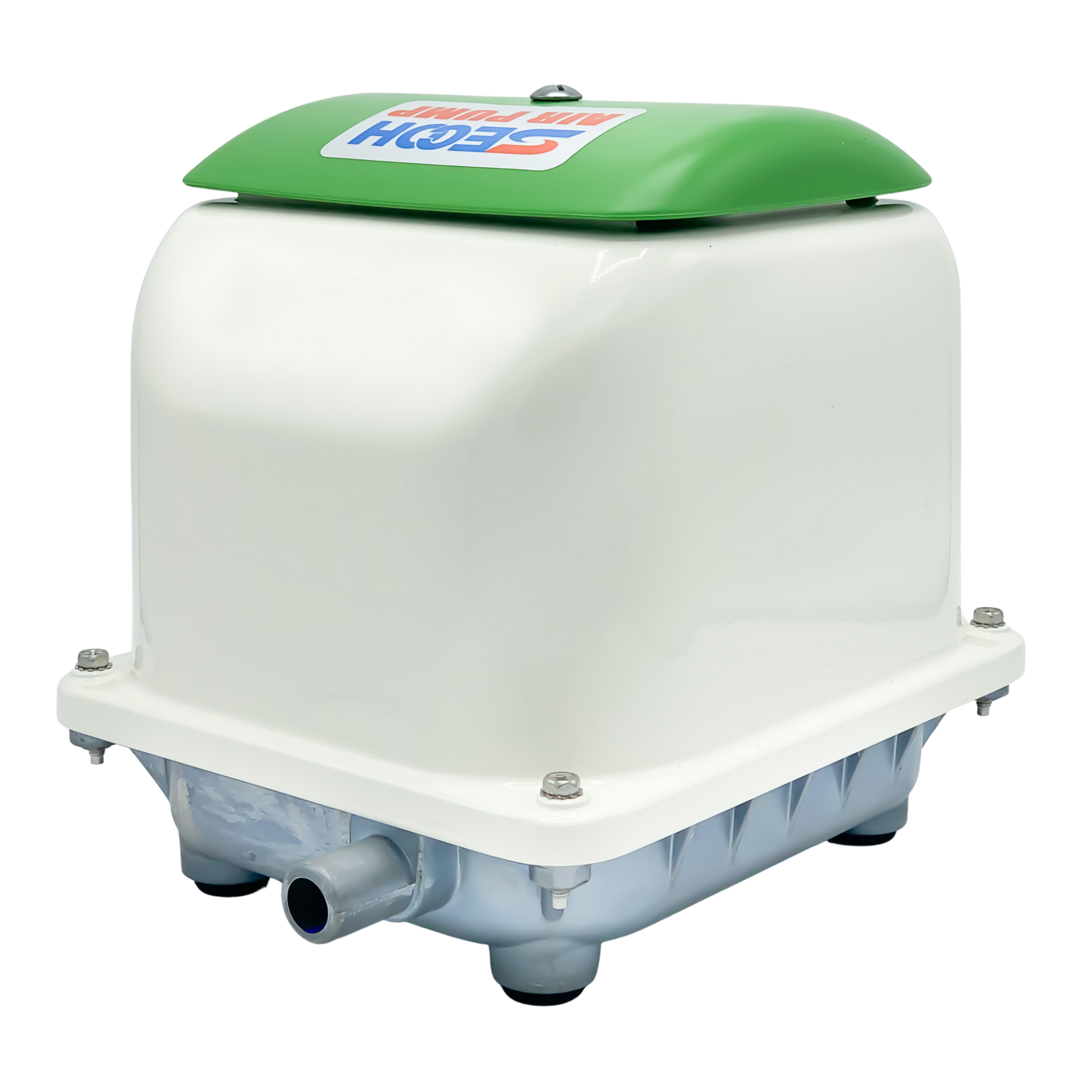

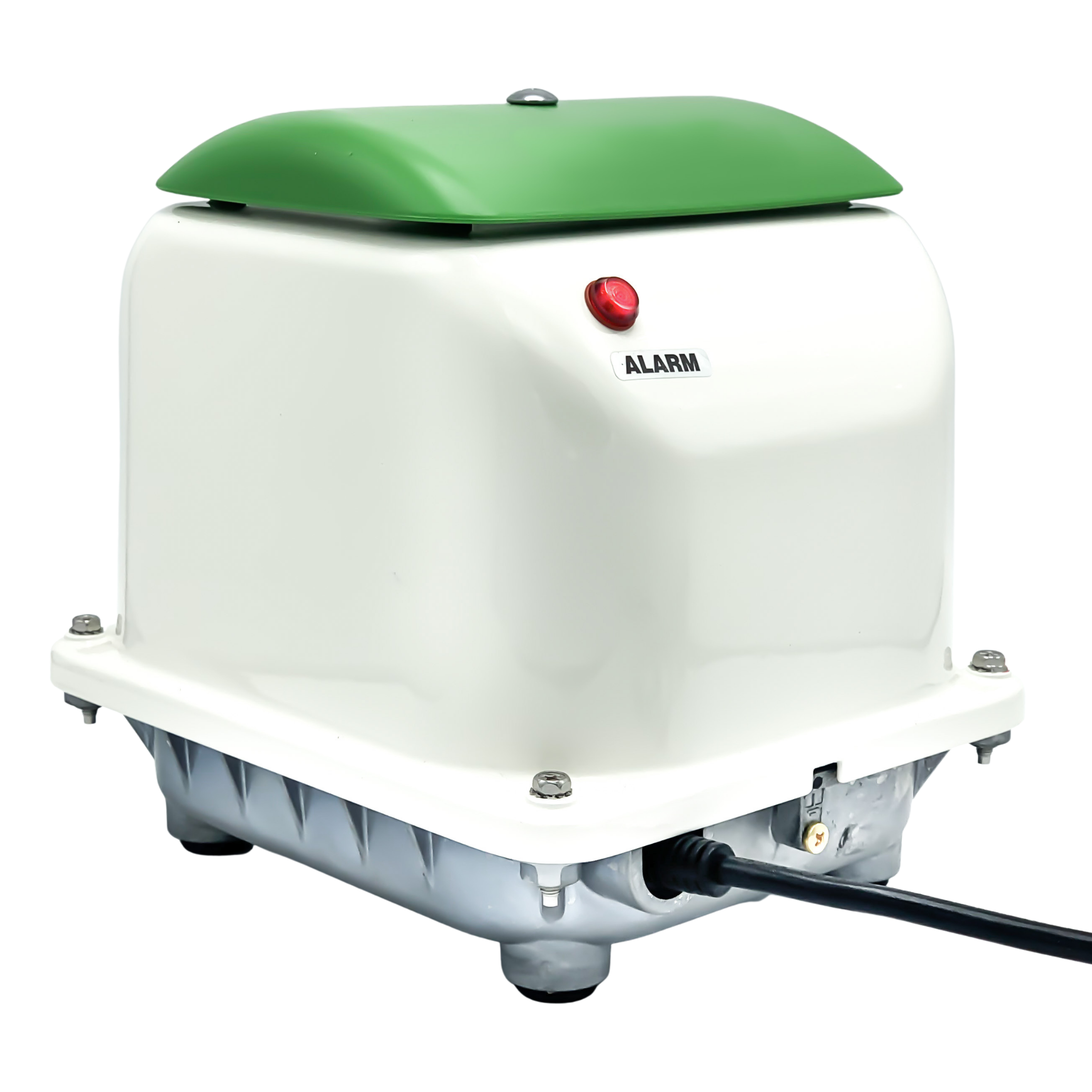

The Secoh JDK-S-60 Air Pump/Blower is the replacement for the Secoh EL60, LP60 and HP60 blowers. This blower is used in the Biosafe/ CLP6 unit, located on the inside of the unit.

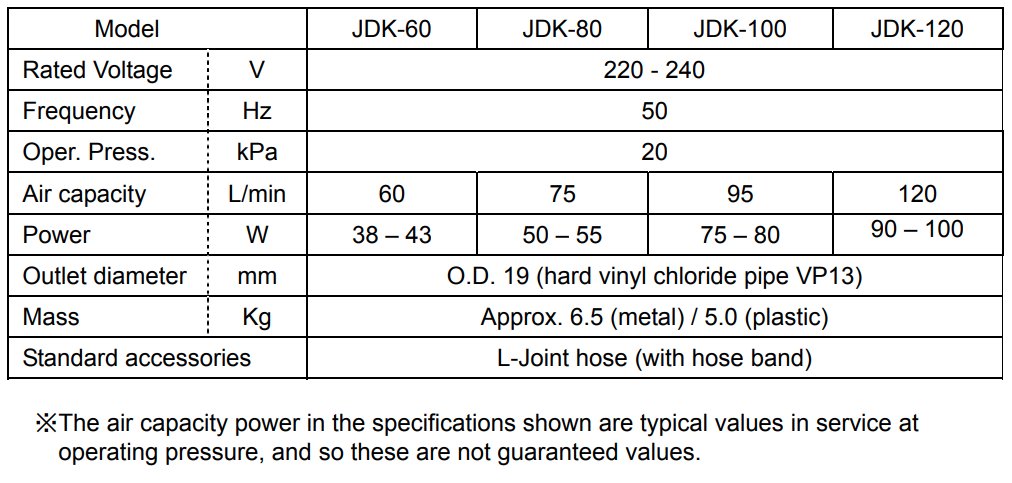

Specification

Optimal Operating Pressure: 0.20 Bar
Open Flow: 60 l/min
Voltage: 230 VAC
Maximum Power Consumption (at 180mbar): 40 W
Frequency: 50 Hz
Sound Level (at 1.5m): 38 db(A)
Dimensions: 254 x 177 x 176 mm
Connection: 19 ømm
Net Weight: 4.5 kg



Features

The JDK models boast less energy consumption (up to 30% - depending on the application) and less overall dimensions (also by about 30%) compared to the SLL and EL series. This makes the class not only more compactly, but also lighter.


Long life expectancy
Motor and pump parts are combined in one single construction. The compact and light construction form and the simple mechanism guarantee a long and reliable period of operation.


High degree of efficiency
The principle of electromagnetic oscillation, which practically has no mechanical friction, minimises power consumption and provides a high degree of efficiency.


Low noise level
The soundproof casing and the muffler integrated in the tank base reduce operating noise.


Low vibration
Motor and pump parts are separated by a vibration-isolating rubber, so only low vibration consists.


Completely oil-free
The oil-free operation guarantees a dry and unadulterated air flow.


Pulsation-free air flow
Specially formed pump chambers and the muffler integrated in the tank base provide an air flow, which is practically pulsation-free.


Weatherproof
The SLL, EL and JDK series are rainproof and weatherproof. However, they should not be exposed to direct sunlight, rain or snow.


Universal service kits
For each model series service kits are available. They are vacuum-packed in aluminium foil for better and longer life/ storage.




Applications
  • Water treatment and environmental technology
  • Aquaculture
  • Medical and health technology
  • Aeration of fuel cell stacks
  • Aqua-air-lights and design pillars



Please note: The Secoh S-series air blowers come with a standard EU plug which will require an adaptor (this can be purchased separately to be delivered with the blower)



Click here for Install instructions for JDK-S-60 Air Blower
