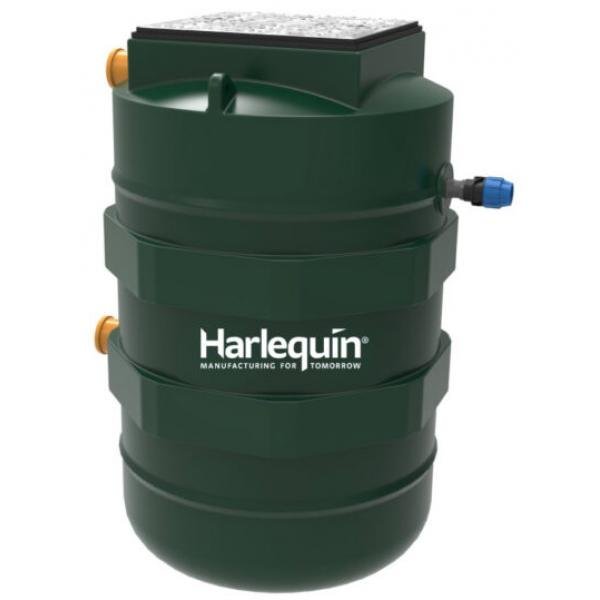

Harlequin 1100 Litre Effluent Single Pump Station | 1100PSE1

Email us now to get a quick quote

sales@direct-drainage.co.uk

Or call to action

01388 537 050

Secure Payment

Multiple payment gateways for fast secure checkout.

Best Price Guarantee

If you find the same product cheaper elsewhere, we'll match it.

Direct Drainage Reviews

The Harlequin 1100 Litre Effluent Pump Station is suitable for pumping final stage effluent from a sewage treatment plant or septic tank to a suitable drainage field. This chamber can also be used for pumping final stage effluent from a sewage treatment plant to a watercourse (subject to obtaining EA permits).

 Harlequin pump chambers are manufactured from rotationally moulded polyethene making them stronger and easier to handle than some of the GRP alternatives.

 There is a twin pump version of this pump station.

 Pump Station Installation Guide

1100 Litre Pump Station Specification

1100 Litre Pump Station Drawing

 Harlequin Pump Station Brochure

     Specifications:

    Model: 1100PSE1
    Capacity (litres): 1100
    Invert Depth (mm): 1095
    Outlet Depth (mm): 440
    Overall Depth (mm): 1645
    Diameter (mm): 1000
    Outlet Connection (mm): 50
    Inlet Diameter (mm): 110
    Cover Dimensions (mm): 600 x 600
    Cover Duty: Pedestrian
    Pump:  DAB -Stainless Steel
    Pump Voltage: 220-240V 50Hz
    Weight (kg): 72

    Benefits of the Harlequin Effluent Pump Station
