SPEL Vehicle Washdown Silt Trap (12 tonne)

Email us now to get a quick quote

Or call to action

01388 537 050

Secure Payment

Multiple payment gateways for fast secure checkout.

Best Price Guarantee

If you find the same product cheaper elsewhere, we'll match it.

Direct Drainage Reviews

Fill in our enquiry form for a full, comprehensive and site-specific quotation turned around to you quickly.

 SPEL Vehicle Wash Silt Trap Website Enquiry Form

 SPEL Vehicle Wash Silt Trap Drawing

 Vehicle Wash Silt Trap Installation

 25 Year Warranty

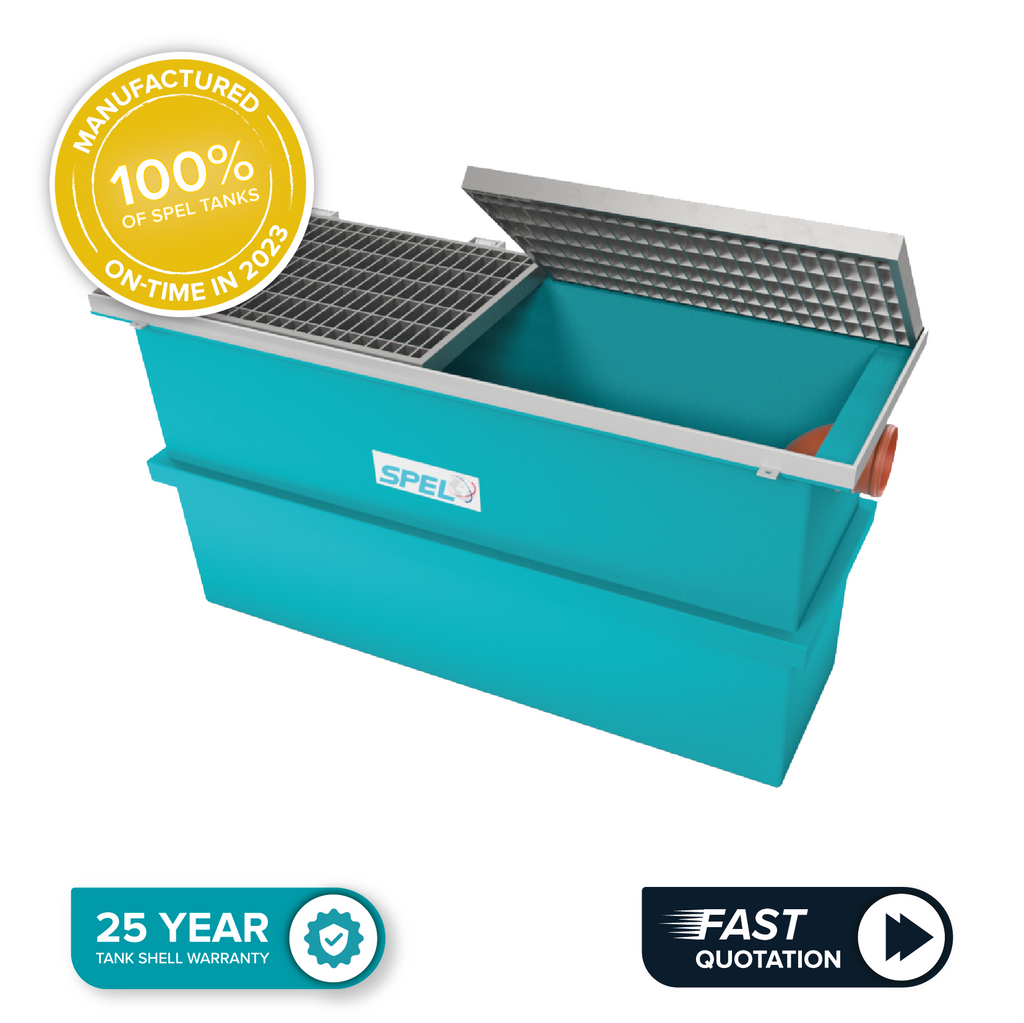

SPEL ST800-12 Vehicle Wash Silt Trap – 12 Tonne (Facta D)

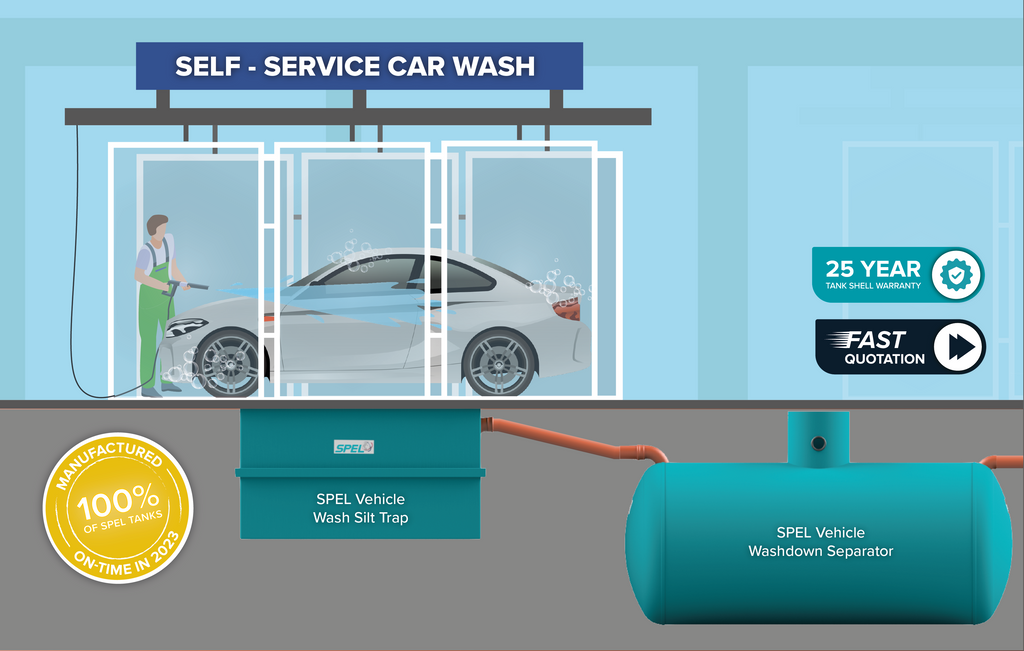

SPEL Vehicle Wash Silt Traps are installed right in the area where the washing activity happens with the galvanised grating being installed at ground level with all of the washdown water running into the silt trap via this open top grating. The Vehicle Wash Silt Trap is usually installed upstream of a SPEL Vehicle Washdown Separator. This is a great upstream option because it captures the bulk of the silts and because of its large opening (the top grating opens on a hinge) it has great access for very easy silt removal, meaning that the SPEL Vehicle Washdown Separator downstream does not have to be emptied as often.

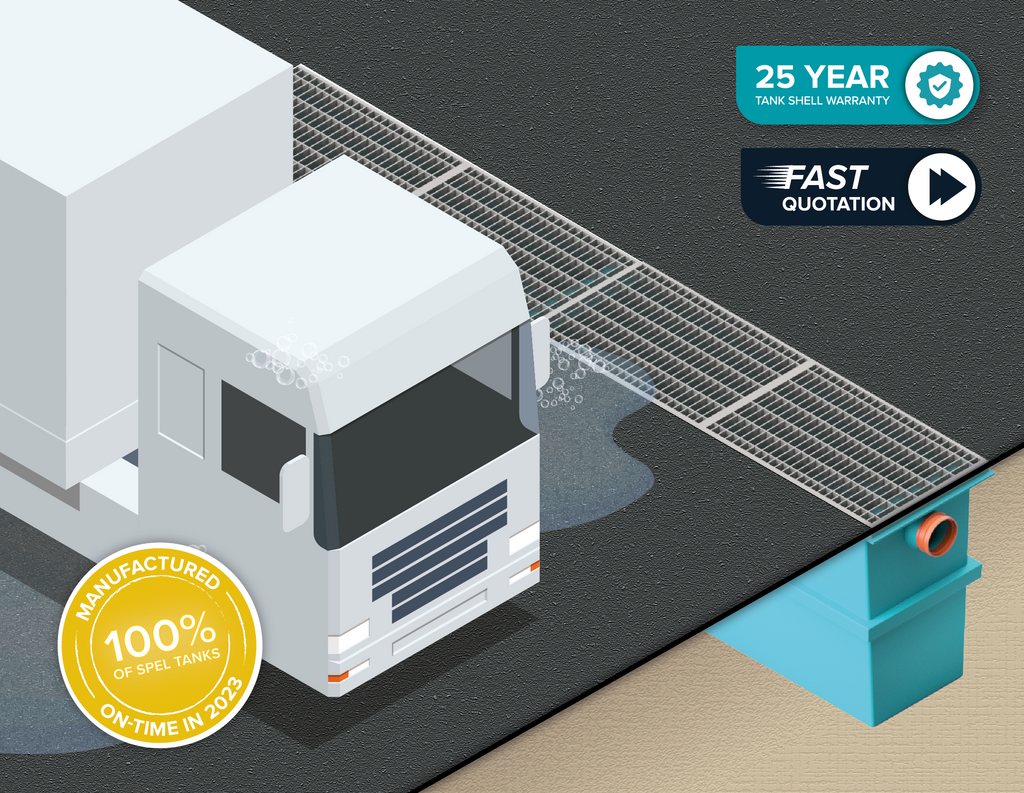

This Vehicle Wash Silt Trap comes with a Facta D (12 Tonne) grating for use with HGVs and similar. A Facta B (5 Tonne) grating is available for light vans and cars.

Features and Benefits

  • 25 Year Warranty and life expectancy in excess of 50 years when installed as per our installation guidance
  • Easy access for maintenance
  • So far in 2023 (up to the end of October 2023) SPEL have manufactured 100% of tanks on time so you can be confident you will get your tank on time with no delays or surprises!
  • Two grating types for either Facta B or Facta D for vans and cars or HGVs.


Length (mm):   2050
Width (mm):   750
Height (mm):   1065
Silt Storage (litres):   800
Cover Loading:   Facta D – 12 tonne
