Product Code: PP/14320/PD/SET
Advanced Liquid Level Monitoring for Oil, Silt & Water in Separator Tanks

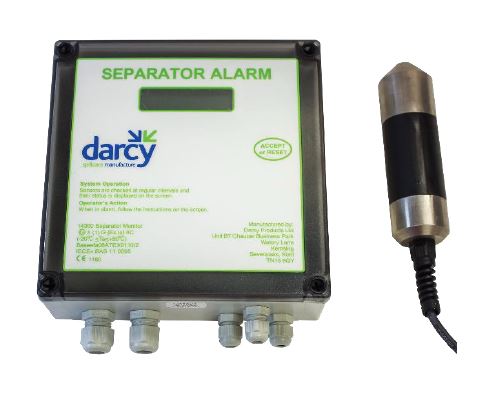

The Darcy mains-powered interceptor alarm system is a reliable and efficient solution for monitoring oil separators and interceptor tanks. Equipped with three dedicated probe sensors, this system continuously monitors the levels of oil, silt, and water within the tank.
When liquid levels exceed safe thresholds, the unit activates an audible klaxon or visual beacon alarm, alerting users to take prompt action. This helps ensure environmental compliance and reduces the risk of oil discharge into watercourses, which can lead to costly fines and clean-up efforts.
For remote or unmanned sites, the system can be upgraded to include GSM text alerts, notifying up to 8 users instantly via SMS.
Key Features & Benefits
-
Triple Sensor Monitoring: Simultaneously detects oil, high water levels, and silt accumulation in separator systems.
-
Visual & Audible Alerts: Integrated klaxon or beacon provides clear notification of unsafe levels.
-
Remote Monitoring: Optional GSM functionality sends SMS alerts to up to 8 mobile numbers for offsite awareness.
-
Custom Display Options: Personalise your unit with custom branding, contact details, and LCD messages (available on request).
-
Environmental Compliance: Designed to comply with EN858-1 & EN858-2, and PPG3 guidance for pollution prevention.
Technical Specification
-
Power Supply: 230V AC
-
Sensor Types:
- Oil Detection Probe (5m flylead)
- High-Level Liquid Probe (5m flylead)
- Silt Probe (5m flylead)
-
Enclosure Rating: IP66/67 – weather and dust resistant
-
Audible Warning: Integrated beeper when oil or air is detected
-
Display: Liquid Crystal Display (LCD)
-
Certification:
- ATEX Approved to BS EN 60079-11
- Explosion Protection: Ex II (1) G [Ex ia Ga] IIB
- Operating Temperature: -20°C to +50°C
Applications
- Fuel forecourts
- Industrial and commercial drainage systems
- Environmental and wastewater treatment facilities
- Oil/water interceptor tanks
- Bunded storage areas
What’s Included
- Control Panel (230V)
- Oil Detection Probe (5m)
- High-Level Liquid Probe (5m)
- Silt Detection Probe (5m)
Why Choose This Interceptor Alarm System?
- Enhances site safety and pollution control
- Reduces separator maintenance and service costs
- Supports automated and remote monitoring
- Compatible with separators from all major manufacturers
- Helps maintain regulatory compliance and avoid environmental penalties
