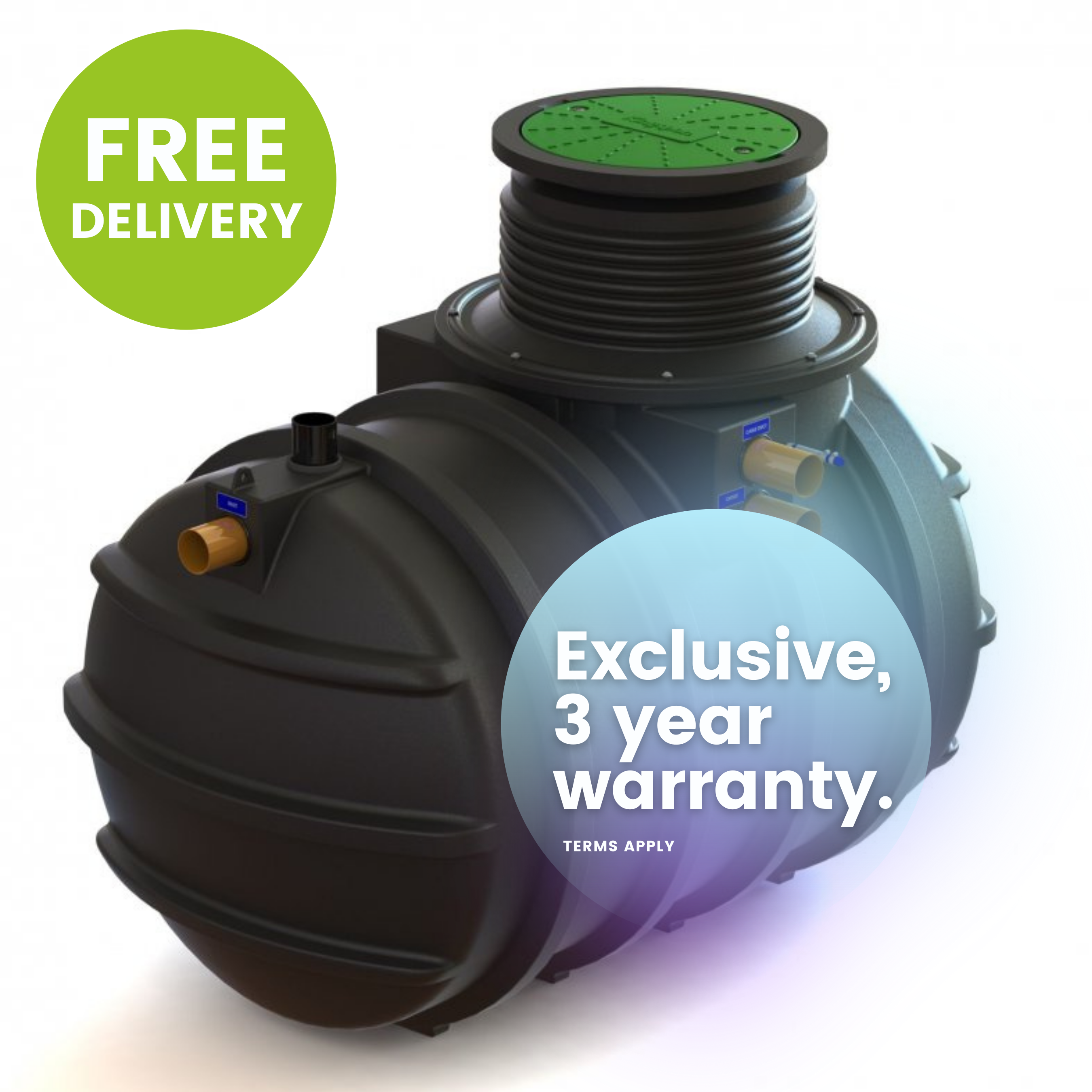

Introducing the new Klargester BioFicient 1 Package Sewage Treatment System, designed for shallow-dig applications. The packaged system comes complete with control panel, loss of pressure alarm and blower.
Introducing the new Klargester BioFicient 1 Package Sewage Treatment System, designed for shallow-dig applications. The packaged system comes complete with control panel, loss of pressure alarm and blower. The BioFicient 1 can be supplied suitable for gravity discharge, or with an integrated pump system if required.
The Klargester BioFicient 1 has been specially designed for shallow-dig applications, allowing for an unobtrusive below-ground installation. Its unique design features include its low profile and extension neck, saving on-site time and expense.
The BioFicient is a highly economical and reliable solution for your sewage treatment needs. With low running costs, the all-new BioFicient is easy to maintain, with the high performance you'd expect from a Kingspan Klargester model.
The BioFicient systems come with free UK delivery with the option for hi-ab offloading.
Klargester BioFicient 1 - Sizing your System
BioFicient 1: suitable for up to 6 population (up to 4 bedrooms) - black plastic construction
BioFicient 2: suitable for up to 8 population (up to 6 bedrooms) - GRP construction
BioFicient 3: suitable for up to 10 population (up to 8 bedrooms) - GRP construction
How the Klargester BioFicient 1 works
The moving aerated media process used is a compact development of the traditional biological process and provides a more effective and complete means of reducing the loads.
- Raw sewage gravitates to the unit where it is received in the primary settlement zone. Here, gross solids and other social debris settle to the bottom of the tank where they remain until the tank requires de-sludging. Settled sewage is displaced from primary zone and enters the first of : two sequential moving aerated media reactors.
- Media and liquid circulation in each zone is achieved through the use of a compressor and diffuser, which introduces fresh air into each compartment. The liquor is constantly re-circulated and contacts the moving media and as it does so, it is purified by the microorganisms (biomass) growing on the surface of the media and within the moving liquor. Excess growth of biomass is shed as solid particles into the liquor.
- The final settlement tank is where humus solids settle to form sludge. At pre-set intervals, portions of the sludge and liquor are returned to the primary tank for additional treatment.
- Final effluent is displaced from the final settlement tank. With regulator approval, it is suitable for discharge to a watercourse or drainage field.

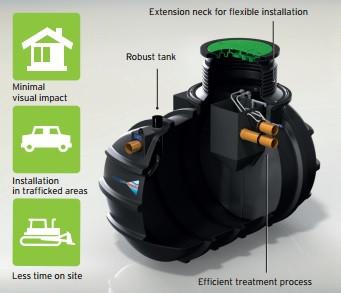

Klargester BioFicient 1 Features and Benefits
Contact Direct Drainage
- Minimal visual impact
- Low profile cover, slightly larger than a manhole cover and flat
- Comes with a standard invert of 785mm which can be trimmed to a minimum of 500mm. Extension necks can be purchased separately to increase the invert height.
- Saves on-site installation time
- Low running costs
- Excellent ammonia reduction (0.4 mg/l)
for more information on the BioFicient range, or visit the Kingspan website
