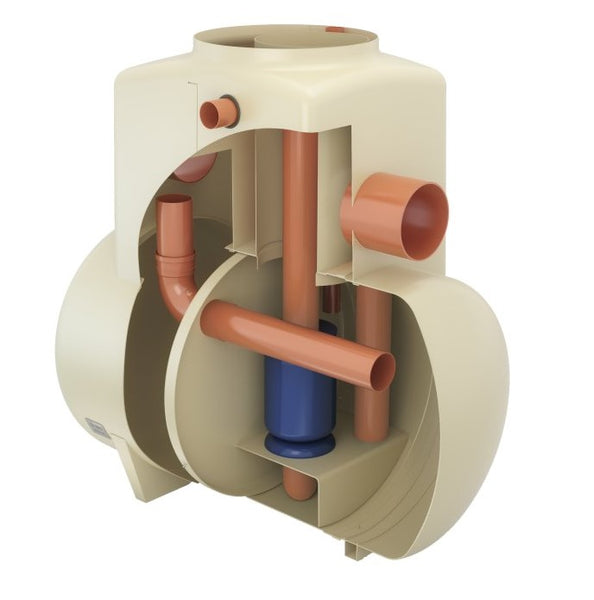

The Kingspan Klargester Bypass Separator NSBE015 is suitable for areas up to 8,335 sq/m. Bypass separators are used when it is considered an acceptable risk not to provide full treatment, for very high flows, and are used, for example, where the risk of a large spillage and heavy rainfall occurring at the same time is small, e.g.
Surface car parks
Lightly contaminated commercial areas
Klargester Separator Brochure
Klargester Kingspan Bypass Separator drawing – NSBE010-NSBE030
Klargester Kingspan Bypass Separator Guidelines Class 1– NSBE010-NSBE125
Klargester Separator NSBE015 Alarm Options
Environment Agency PPG3 Guidelines stipulate that all separators must be fitted with a robust system to provide an audible and visual alarm if the oil level becomes too high. We strongly recommend that you purchase either the Darcy Mains Alarm with this item, and it will be delivered with the separator ready to wire in.
Klargester Separator NSBE015 Features and Benefits
Light and easy to install
Inclusive of silt storage volume
Fitted inlet/outlet connectors
Vent points within necks
Extension access shafts for deep inverts
Maintenance from ground level
GRP or rotomoulded construction (rotomoulded for NSBP003, NSBP004 and NSBP006)
To specify a nominal size bypass separator, the following information is needed:
The calculated flow rate for the drainage area served. Our designs are based on the assumption that any interconnecting pipework fitted elsewhere on site does not impede flow into or out of the separator and that the flow is not pumped
The drain invert inlet depth
Pipework type, size and orientation
