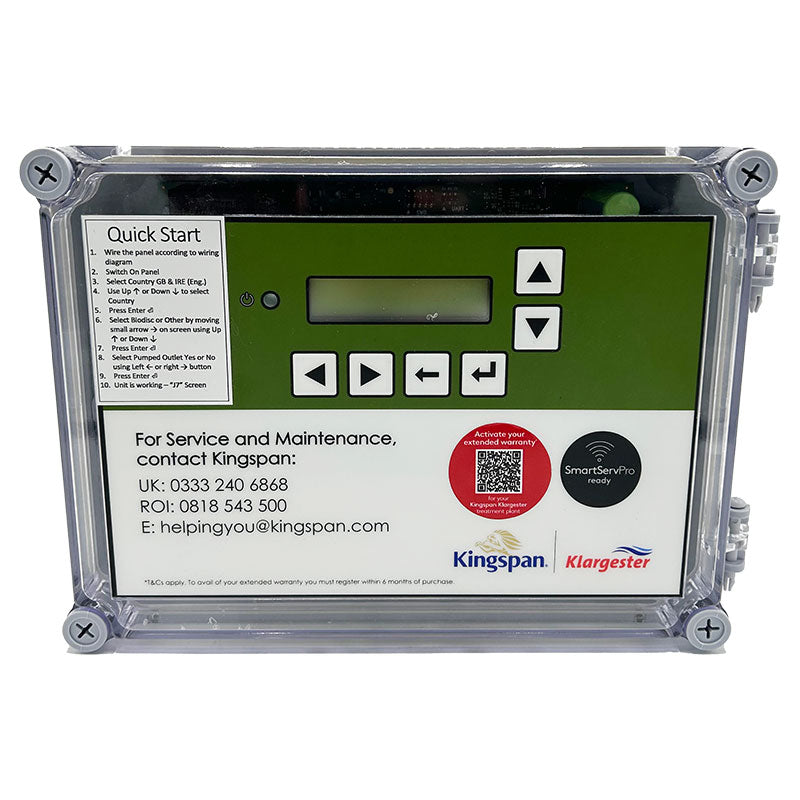

This New Style Klargester Control Panel for sewage treatment systems with a digital display continuously monitors the internal timetables and operates the appropriate pump/motor outputs according to a timetable entry. The status is shown on the display. The current time continues to be updated internally by battery backup when the mains fail, and the control unit continues normally upon mains being restored.

Do you need remote real-time monitoring? Check out the Kingspan SmartServ Pro which bolts onto the Klargester Smart Control Panel.

Do you need a stand? see Smart Control Panel Mount/Stand

  Klargester Smart Control Panel Manual

 Klargester Smart Control Panel Details

• Dimensions: 255mm (W) x 180mm (H) x 88mm (D) Ingress Protection: IP65
• Operating temperature: -20°C … +50°C
• Power Source - 230VAC ±10% 50Hz
• Power Consumtion (Unit Only) - 6.4W, 10.1VA, cos φ = 0.63

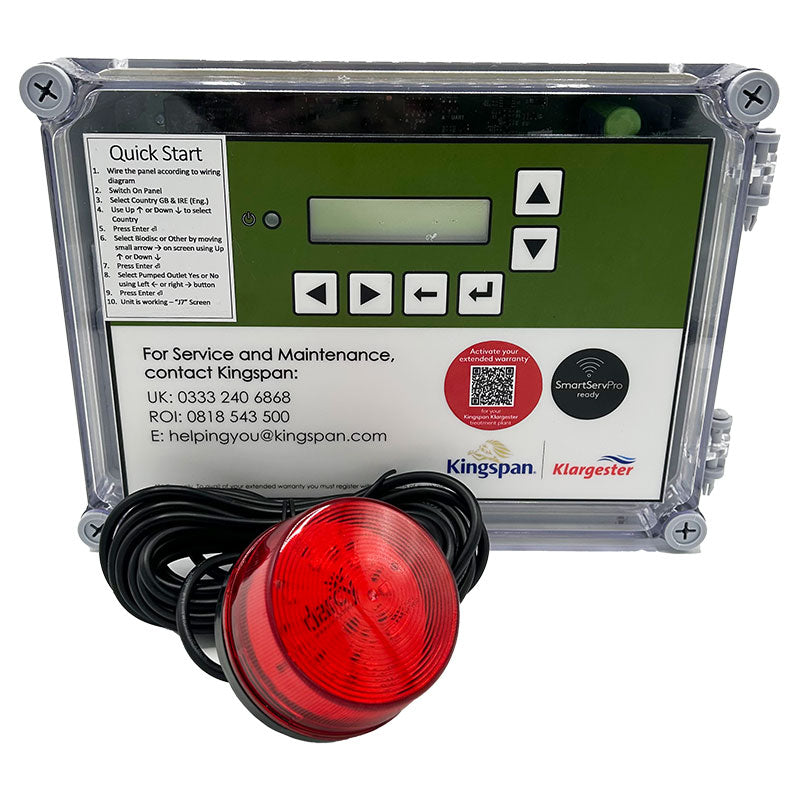

This panel can replace the Kingspan Green Control Panel. The existing green beacon will have to be replaced with the New Beacon as it is not compatible with the new smart control panel.
