Labkotec idOil-20 with Oil and Sludge Sensor
£1,570.00£1,105.00

Secure Payment

Multiple payment gateways for fast secure checkout.

Best Price Guarantee

If you find the same product cheaper elsewhere, we'll match it.

Direct Drainage Reviews

***PLEASE NOTE THIS IS ITEM IS SHIPPED DIRECT FROM THE SUPPLIER - WHILST THE SUPPLIER WILL ENDEAVOUR TO MEET OUT DELIVERY TIMESCALE, IT IS NOT GUARANTEED***

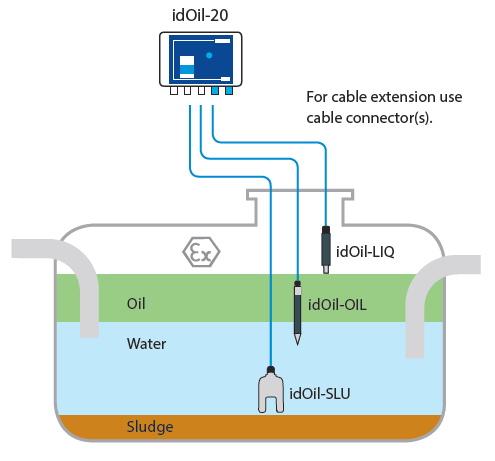

The Labkotec idOil-20 OS system package is specially designed for detecting oil and sludge. The idOil-20 is an easy to use oil separator alarm control unit that offers all necessary features to prevent harmful substances escaping into the environment.

The package includes:

  • idOil-20 control unit

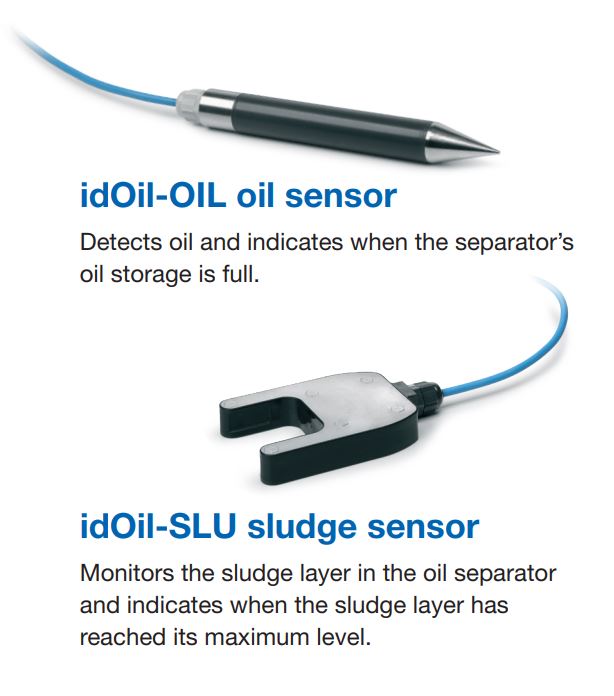

  • idOil-OIL sensor for detecting oil, 5 m sensor cable
  • idOil-SLU sensor for detecting sludge, 5 m sensor cable
  • LCJ1-2 cable connector for two sensors
  • LMS-SAS2 mounting set for idOil control unit
  • LMS-SAS5 mounting set for idOil sensors



 idOil-20 Data Sheet

  idOil-20 Sensors Data Sheet



The idOil-20 features:


    • Is easy to install, as it has no calibration

    • Has no moving parts and so is very reliable

    • Has clear display text, for ease of use

    • Has reset and test functions

    • Has two relay outputs for other systems




Technical details

IP classification: IP65
Enclosure material: Polycarbonate
Mounting: Wall mounted
Ambient temperature: -30 °C…+60 °C
Supply voltage: 100-240 V AC, 50/60 Hz
Compatible sensors: idOil-LIQ, idOil-OIL, idOil-SLU
Relay Outputs: 5 A, 250 V AC/30 V DC, 100 VA, potential-free changeover contacts
Electrical safety: Class I,     IEC/EN 61010-1, UL 61010-1, CAN/CSA-C 22.2 NO. 61010-1-12
Overvoltage category: II
ATEX: EESF 21 ATEX 024X
IECEx: IECEx EESF 21.0017X
Ex-classification: Ex II (1) G [Ex ia Ga] IIB

It is recommended that this alarm can be installed up to 100m from the control panel.
