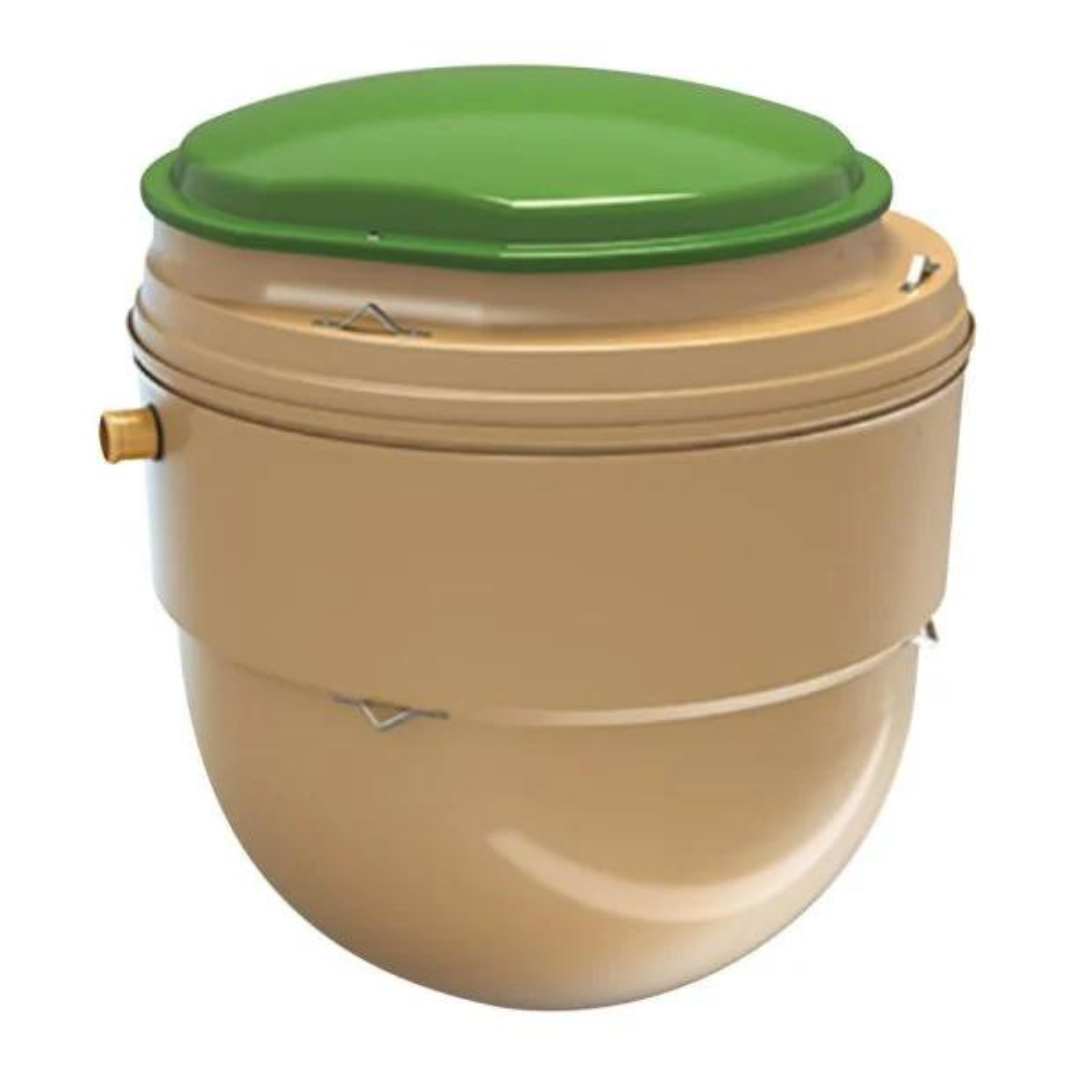

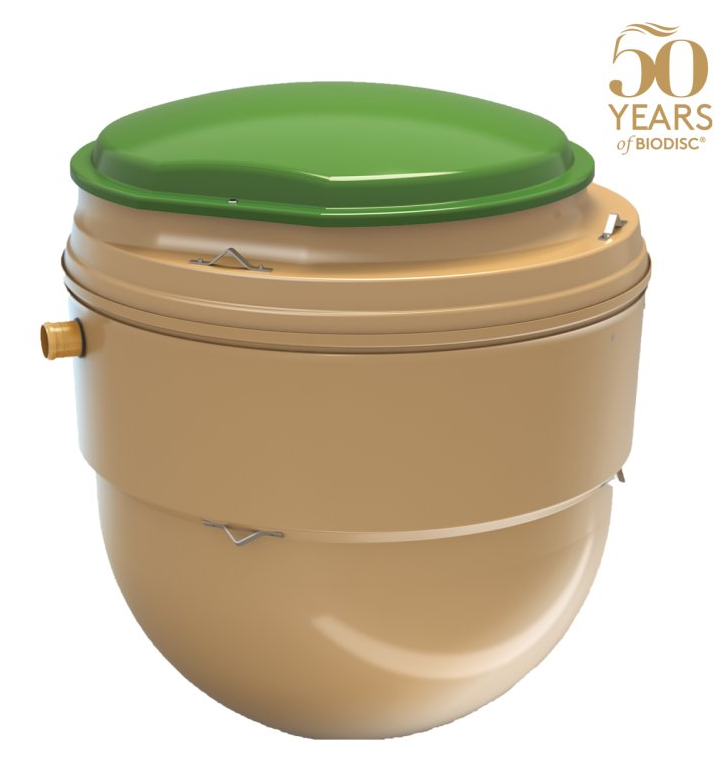

Klargester BB BioDisc Sewage Treatment System (up to 12 person)

Fast Delivery

Get it when you need it

Secure Payment

Multiple payment gateways

  • Product
  • Need Help?
  • Free Delivery

The Klargester BB BioDisc is suitable for up to 12 people and delivers a reliable, effective and ecologically safe solution for anyone with off-mains sewage disposal needs with the lowest running and maintenance costs of any packaged treatment plant in its class.

Free Delivery  Sewage Treatment Best Price Guaranteed

Current Leadtime 3 Working Days

 How to get Klargester Extended Warranty

Klargester BioDisc PIA Certificate

  BioDisc Domestic Certification

  BB BioDisc Product Brochure

  BioDisc BB Installation Manual

  BioDisc Owners Manuel Handbook for Domestic Systems

  BioDisc BB Gravity Drawing

  BioDisc BB Pumped Outlet Drawing

 Commissioning and Servicing Information

Servicing Interval- 12 months

De-Sludging Interval- 12 months

The drive motor within the BioDisc runs virtually silently and has a much lower power consumption and a significantly greater life expectancy than a typical aeration unit. Low running costs, combined with the quality and durability of the equipment, all add up to a significantly lower lifetime cost. The BioDisc now also comes with a Loss of Rotation alarm (and Pump alarm on the IPS system) as standard.

  • Certified to European Standard EN 12566 - Part 3 - Annexe B - Performance Tests
  • 7 year extended warranty (terms apply)
  • No noise or smell
  • Lowest maintenance costs
  • Lowest energy usage
  • Very good access for maintenance
  • No technical or mechanical faults
  • Lowest sludge accumulation and sizeable storage capacity
Technical Specification BB BioDisc
Parameters PE 12
Max. Daily Flow m3 2.4
Max. Daily BOD5 g BOD5 720
Max. Daily Ammonia g NH4 96
Overall Diameter mm 1995
Inlet Invert Depth  mm 450/750/1250
Depth Below Inlet Invert  mm 1400
Outlet Invert Depth  mm 1315
Overall Height  mm 2160/2460/2960
Height to Rim of Cover  mm 1945/2245/2745
Empty Weight kg 335/350/405
Standard Power Supply 1 Phase
Motor Rating - Single Phase  W 60
Full Load Current - Single Phase  A 0
Sludge Return Pump Rating  W 250

*Based on residential applications and daily flow rates
