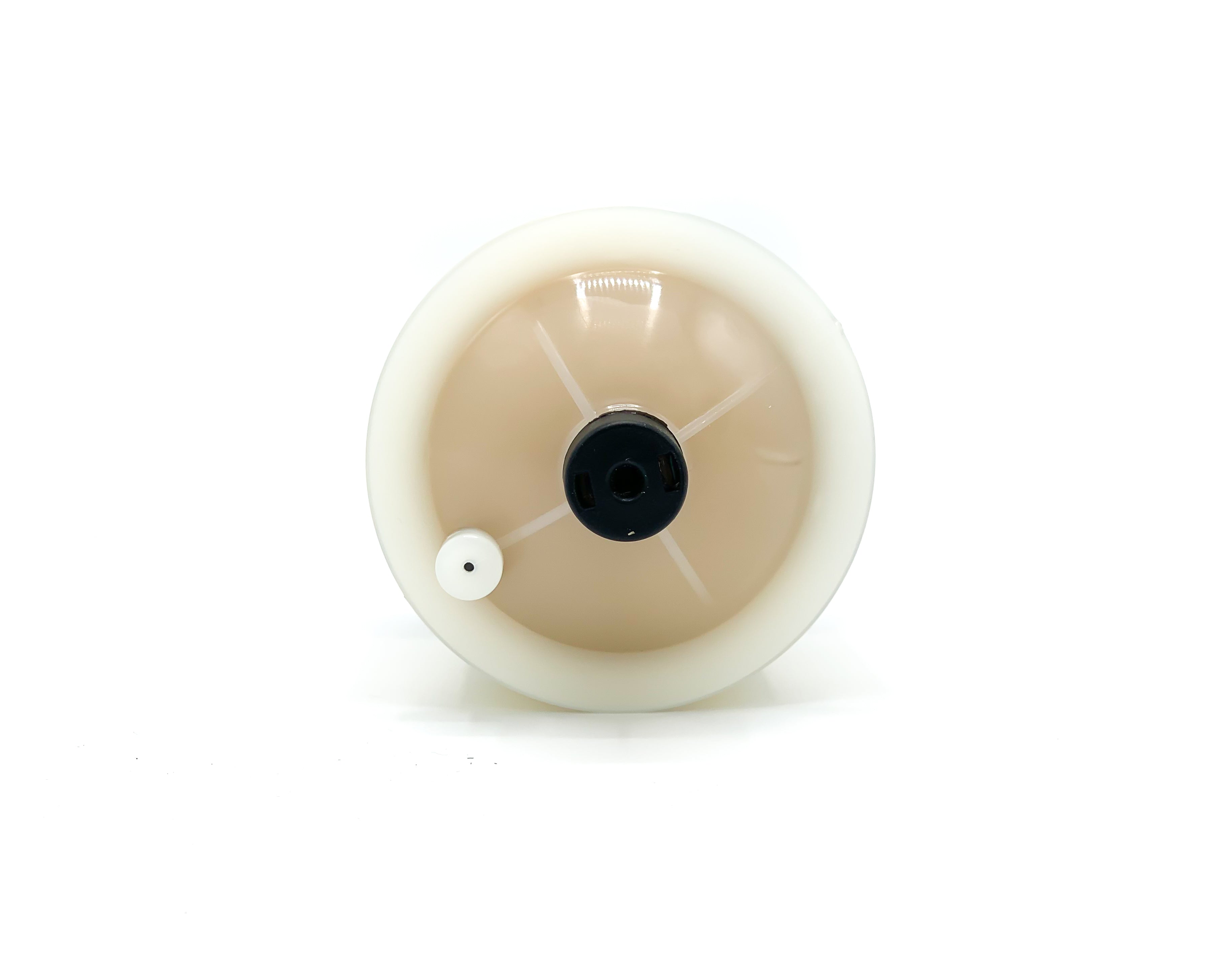

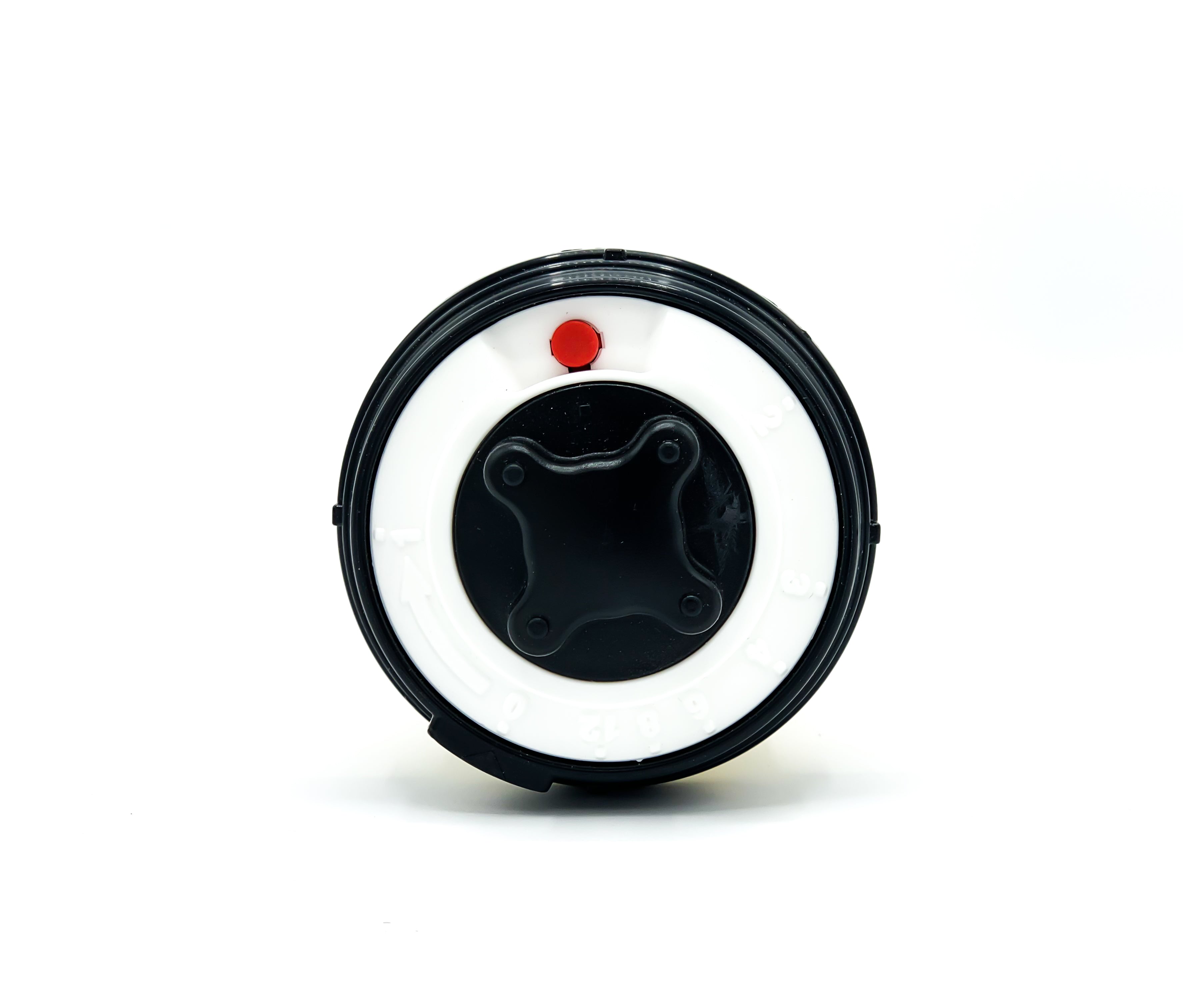

Klargester BioDisc Greasomatic Multipurpose Cartridge

The Klargester BioDisc Greasomatic Lubricator Cartridge is a self-contained automatic lubrication system designed for use on Klargester BioDisc Sewage Treatment Systems from BD models onwards. Providing a continuous supply of grease directly to the drive chain, this cartridge helps reduce maintenance requirements, minimise wear and ensure smooth, reliable operation of your BioDisc treatment plant.

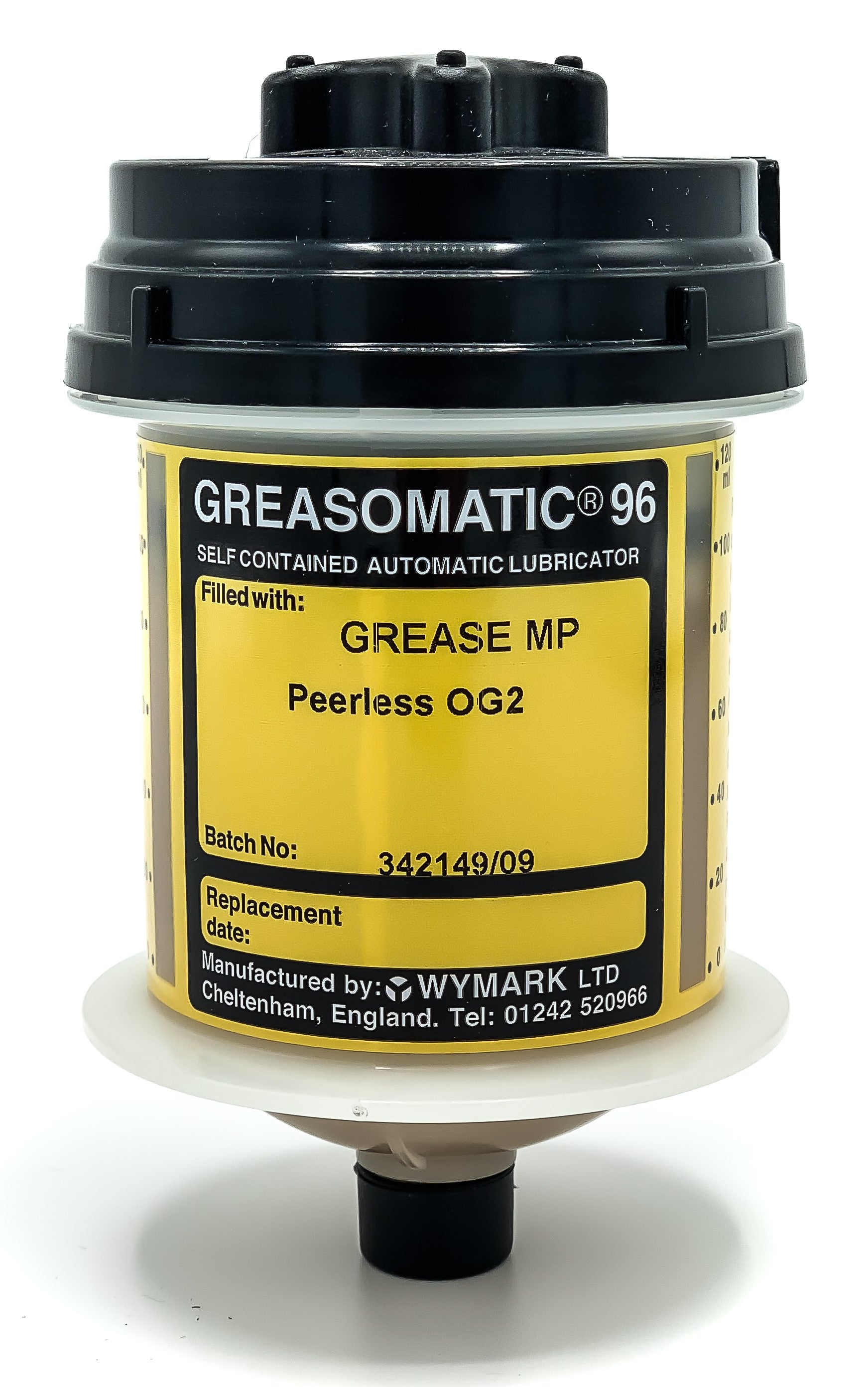

Manufactured in Great Britain by Wymark, the GREASOMATIC®96 is a cost-effective alternative to manual lubrication, delivering a controlled amount of lubricant over a pre-selected period without the need for pumps, motors, electricity or compressed air.

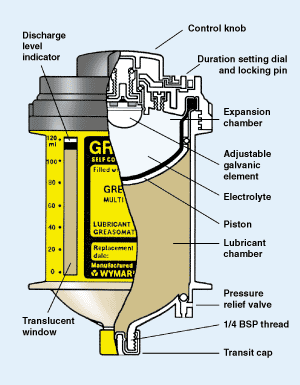

How Does the Greasomatic Cartridge Work?

The Greasomatic cartridge is a self-ejecting lubricator that screws directly into a grease nipple socket or compatible lubrication point. Once activated, it automatically dispenses 120ml of lubricant in a continuous and controlled flow over a period ranging from 1 to 12 months.

The cartridge operates independently and requires no external power source. Once fitted and activated, it will continue lubricating the chain drive until the cartridge is fully depleted, helping to maintain optimal drive system performance with minimal intervention.

Key Features & Benefits

• Suitable for Klargester BioDisc systems from BD models onwards
• Self-contained automatic lubrication cartridge
• Dispenses lubricant continuously for 1 to 12 months
• Contains 120ml of multi-purpose grease
• No pumps, motors, electricity or compressed air required
• Helps extend chain and sprocket life
• Reduces routine maintenance requirements
• Prevents under and over-lubrication
• Easy installation and activation
• Manufactured in Great Britain by Wymark
• Reliable and cost-effective alternative to manual lubrication

Benefits of Automatic Chain Lubrication

• Maintains consistent lubrication of the BioDisc drive chain
• Reduces friction and wear on moving components
• Extends the lifespan of chains and sprockets
• Improves drive assembly reliability
• Reduces maintenance downtime
• Supports efficient wastewater treatment plant operation

Applications

The Greasomatic Lubricator Cartridge is commonly used for:

• Klargester BD BioDisc systems
• Larger Klargester BioDisc treatment plants
• Drive chain lubrication
• Preventative maintenance programmes
• Wastewater treatment equipment servicing

Greasomatic Union Fittings

The following adaptor fittings are available for connecting Greasomatic cartridges to different lubrication points:

Product Specifications

Greasomatic Union Fittings

GMA1: 1/4 BSP/F/P: 1/8 BSP/M/P

GMA2 - 1/4 BSP/F/P: 3/8 BSP/M/T

1/4 BSP/F/P : 1/4 BSP/F/P

Important Information

This product includes one Greasomatic automatic lubrication cartridge only. For optimal chain lubrication, it is typically used in conjunction with a Greasomatic Dispensing Brush, which distributes grease evenly across the drive chain during operation.
