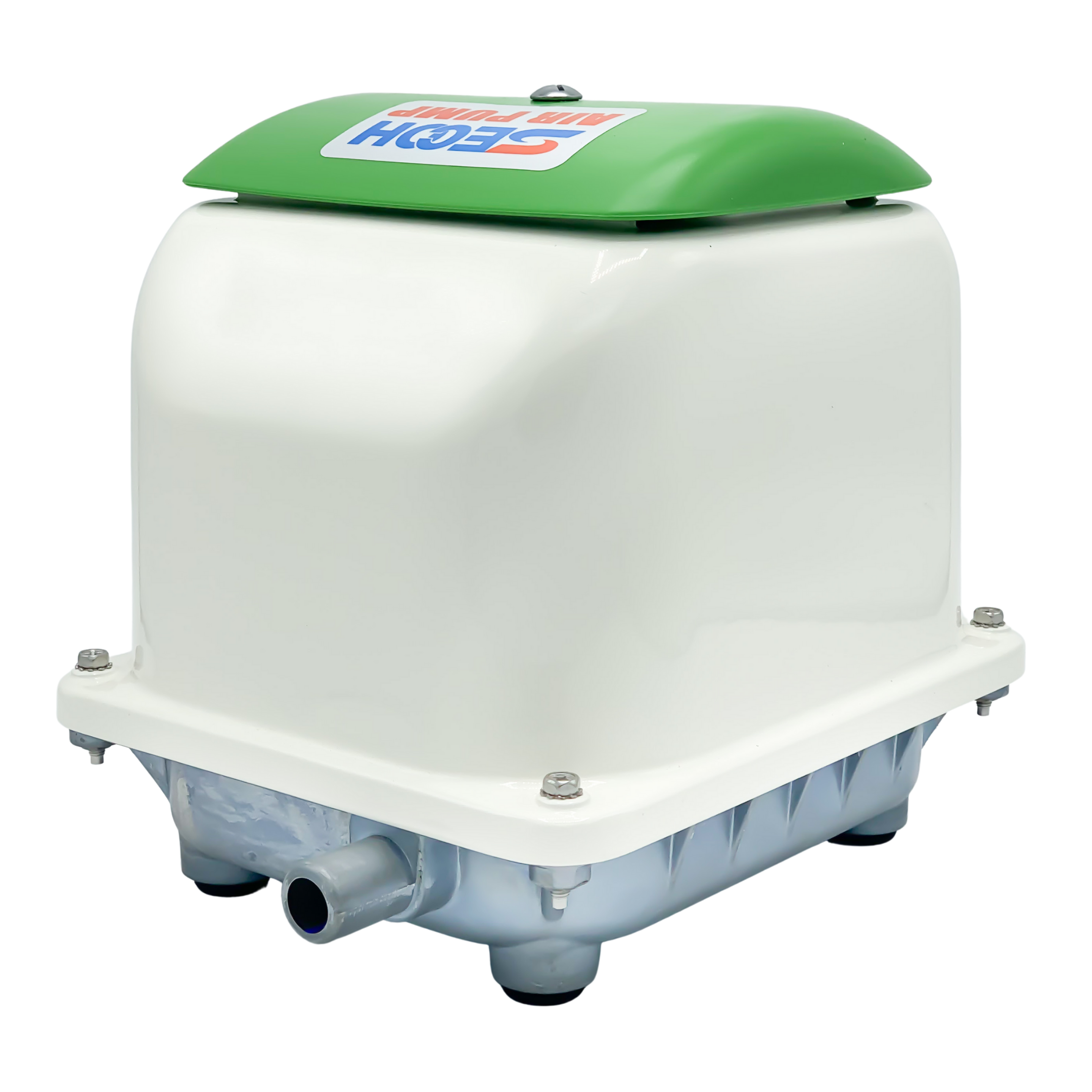

Secoh JDK-S-80 Single Series Diaphragm Blower (EL-80)

Fast Delivery

Get it when you need it

Secure Payment

Multiple payment gateways

  • Product
  • Secoh Checklist
  • Next Day Delivery

The JDK80 Air Pump is a replacement for the Secoh EL-S-80-15. The JDK-S-80 is used in Klargester, MATRIX and Tricel sewage treatment systems along with aeration in ponds.


Install instructions for JDK-S-80 Air Blower

 JDK-S-80 Specification

 2 Year Warranty

 Secoh Air Blower Service Check List



Optimal Operating Pressure: 0.20 Bar
Open Flow: 75 l/min
Voltage: 230 VAC
Maximum Power Consumption (at 180mbar): 53 W
Frequency: 50 Hz
Sound Level (at 1.5m): 40 db(A)
Dimensions: 254 x 177 x 176 mm
Connection: 19 ømm
Net Weight: 5 kg plastic, 6.5 Aluminium



The JDK models boast less energy consumption (up to 30% - depending on the application) and less overall dimensions (also by about 30%) compared to the SLL- and EL-series. This makes the class not only more compactly, but also lighter.

Long life expectancy
Motor and pump parts are combined in one single construction. The compact and light construction form and the simple mechanism guarantee a long and reliable period of operation.

High degree of efficiency
The principle of electromagnetic oscillation, which practically has no mechanical friction, minimises power consumption and provides a high degree of efficiency.

Low noise level
The soundproof casing and the muffler integrated in the tank base reduce operating noise.

Low vibration
Motor and pump parts are separated by a vibration-isolating rubber, so only low vibration consists.

Completely oil-free
The oil-free operation guarantees a dry and unadulterated air flow.

Pulsation-free air flow
Specially formed pump chambers and the muffler integrated in the tank base provide an air flow, which is practically pulsation-free.

The SLL, EL and JDK series are rainproof and weatherproof. However, they should not be exposed to direct sunlight, rain or snow.

Universal service kits
For each model series service kits are available. They are vacuum-packed in aluminium foil for better and longer life/ storage.

Please note: The Secoh S-series air blowers come with a standard EU plug which will require an adaptor (this can be purchased separately to be delivered with the blower)

DPD Next Working Day Delivery is available on all Secoh products in stock if ordered before 4pm.
