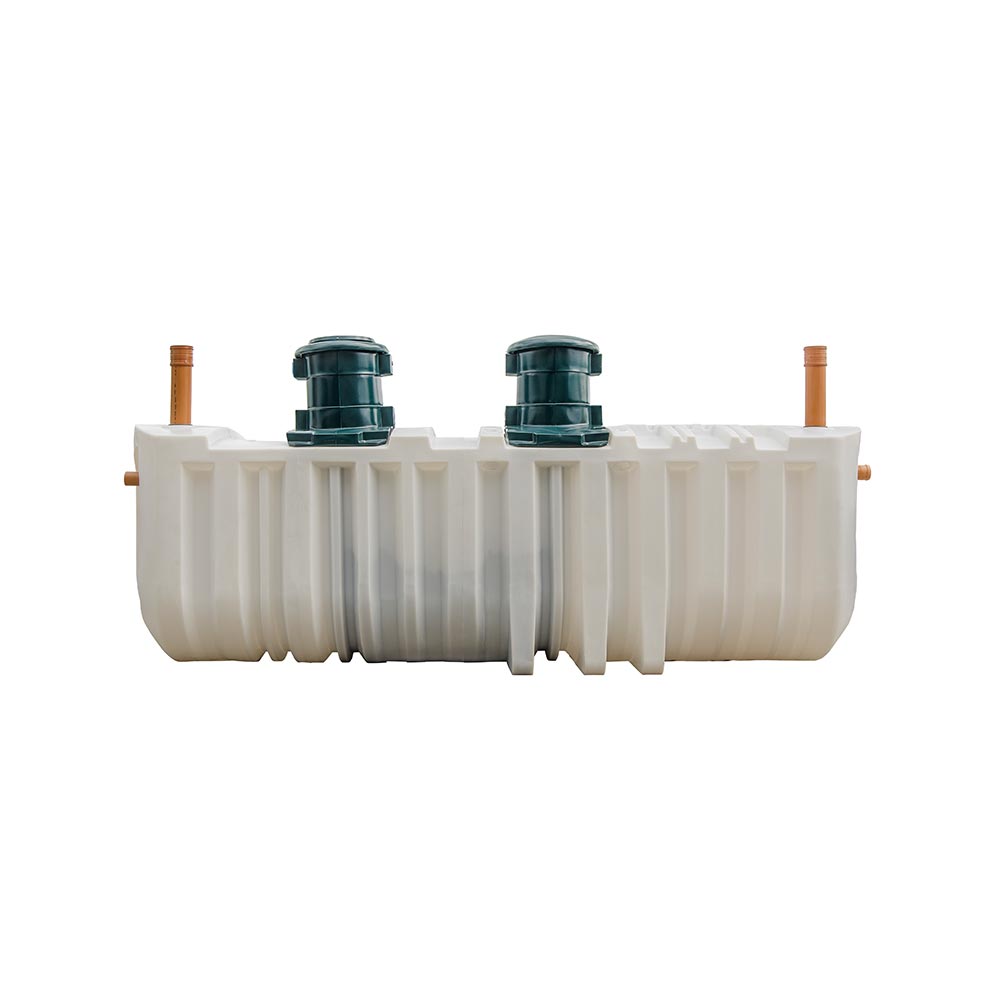

Harlequin HC20 HydroClear Sewage Treatment System (up to 20 Person)
£5,100.00£4,945.00

Secure Payment

Multiple payment gateways for fast secure checkout.

Best Price Guarantee

If you find the same product cheaper elsewhere, we'll match it.

Direct Drainage Reviews

The Harlequin Hydroclear HC20 Person Sewage Treatment Plant is the market leader with pollutant removal level of 96.6%. Wastewater from toilets, showers, kitchens etc is fed directly into the treatment plant, and out the other end comes clarified effluent suitable to be discharged into a soakaway or stream. Market-leading performance, easy installation, virtually inaudible operation, low maintenance costs, reliable bio media system and durability are all qualities that make the product best suited for all off-mains sewage treatment requirements.

 As standard the Harlequin Hydroclear HC20 comes as a Gravity Discharge System, if required this can be upgraded to a Pumped Discharge System

 Single, Double and Triple Risers and commissioning available upon request. Call 01388 537 050

  Harlequin Hydroclear HC20 Specification Sheet


Harlequin Hydroclear HC20 Drawing


Harlequin Hydroclear Installation & Operating Instructions (HC12-HC50)


Harlequin Hydroclear Waste Water Sales Brochure

 Commissioning and Servicing Information



 Free Delivery Made in the UK

Best Price Guaranteed



 Why choose a Harlequin Hydroclear HC 20?
  • Silent High performance diaphragm blowers are used and externally housed achieving a virtually silent operation.
  • Oudourless The system is hermetically sealed, coupled with a market leading treatment performance eliminates odour.
  • Unblockable Moving Bed Biological Reactor (MBBR) systems are self-cleaning and unable to become blocked through channelling unlike most fixed film media systems.
  • 96.6% Pollutant removal Producing an excellent 96.6% pollutant removal level, the final effluent can be directly discharged into a stream or soakaway.
  • Cheap maintenance Chamber 1 capacity is as much as 66% larger than other plants, making desludging intervals up to three times longer saving the owner significant costs.
  • Septic Tank Backup The system keeps performing as a Septic Tank in the event of a power failure.

 Harlequin Hydroclear HC 20 Specification

  • Compliant with EN-12566 part 3
  • Population Served: 13 to 20
  • Max. Hydraulic Load: 4000 litres /day
  • Organic Load: 1200g BODs/day
  • Total Capacity: 8380 Litres
  • Length: 5680mm
  • Width: 1400mm
  • Height to Ground Level: 2560mm
  • Empty Plant Weight: 700kg
  • Energy Usage: 2.7kWh/day
  • Service Interval: Up to 24 months depending on the number of inhabitants
  • Inlet Depth: 1090mm
  • Outlet Depth: 1140mm
  • Installation Depth: 2560m
  • Requires 230V, 112W Power Supply

 Key Benefits of the Harlequin Hydroclear HC20

 Virtually Inaudible – High performance diaphragm blowers are used and externally housed achieving a virtually silent operation.


Odourless – The system is hermetically sealed, coupled with a market leading treatment performance eliminates odour.


MBBR Technology – Moving Bed Biological Reactor (MBBR) systems are self-cleaning and unable to become blocked through channelling unlike most fixed film media systems.


Market leading performance – Producing an excellent 96.6% pollutant removal level, the final effluent can be directly discharged into a stream or soakaway.


Low Maintenance Costs – Chamber one capacity is as much as 66% larger than other plants, making desludging intervals up to three times longer saving the owner significant costs.


Power Failure Default – The system keeps performing as a septic tank in the event of a power failure.

 Other sizes in the Harlequin Hydroclear Range

Harlequin Hydroclear HC6 - up to 6 people

Harlequin Hydroclear HC9 - up to 9 people

Harlequin Hydroclear HC12 - up to 12 people

Harlequin Hydroclear HC20 - up to 20 people

Harlequin Hydroclear HC30 - available on request

Harlequin Hydroclear HC40 - available on request

Harlequin Hydroclear HC50 - available on request

 Offloading of Harlequin Hydroclear HC 12

It is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

Option for HIAB offload available on request at additional cost.

We recommend installers and/or plant hire & materials for install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Direct Drainage cannot be held responsible for costs incurred due to unforeseen delays.

Lead times should only be used as a guide and are subject to change, please call our friendly team to confirm delivery and off-loading details on 01388 537 050.

How to contact your Harlequin Hydroclear representative?

Direct Drainage are authorised suppliers of Harlequin tanks and waste water systems. For expert technical advice contuct us now on 01388 537 050 or email us at sales@direct-drainage.co.uk
